Product Details:
Payment & Shipping Terms:
|
| Product Name: | FC PC Fiber Pigtail Optic Patch Cord Simplex Yellow 3.0mm | Connector: | FC PC Connector Optional |
|---|---|---|---|
| Fiber Mode: | G652D | Length: | 1m, 2m, 3m |
| Jacket: | PVC/LSZH | Cable OD: | 3.0mm, 0.9mm, 2.0mm Or Optional |
| Brand Name: | JUNPU Or OEM | Application: | FTTH, Data Center |
| Fiber Counts: | Simplex Or Duplex | Ferrule End Face: | APC Or UPC |
| High Light: | fiber optic pigtail,fibre optic patch leads |
||

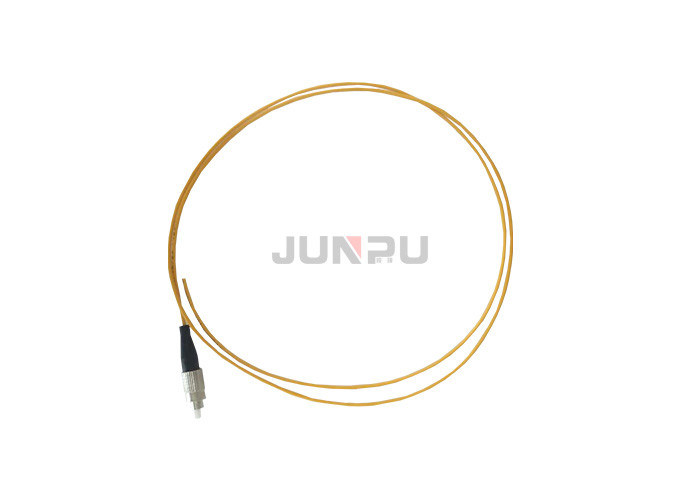

FC PC Fiber Pigtail Optic Patch Cord Simplex Yellow 3.0mm
With years of export experience along with excellent quality, advanced services and competitive prices, we has won numerous customers' trust and support.
Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
9. Customized specifications are welcomed.
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
