Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Duplex Singlemode G675A2 Fiber Optic Pigtail SC APC
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 100000 pieces per week
Product Name: |
SC APC - SC PC Duplex Fiber Optic Patch Cord |
Connector: |
SC APC - SC PC |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU Or OEM |
Application: |
Data Center |
Fiber Counts: |
Duplex |
Ferrule End Face: |
APC Or UPC |
Product Name: |
SC APC - SC PC Duplex Fiber Optic Patch Cord |
Connector: |
SC APC - SC PC |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU Or OEM |
Application: |
Data Center |
Fiber Counts: |
Duplex |
Ferrule End Face: |
APC Or UPC |

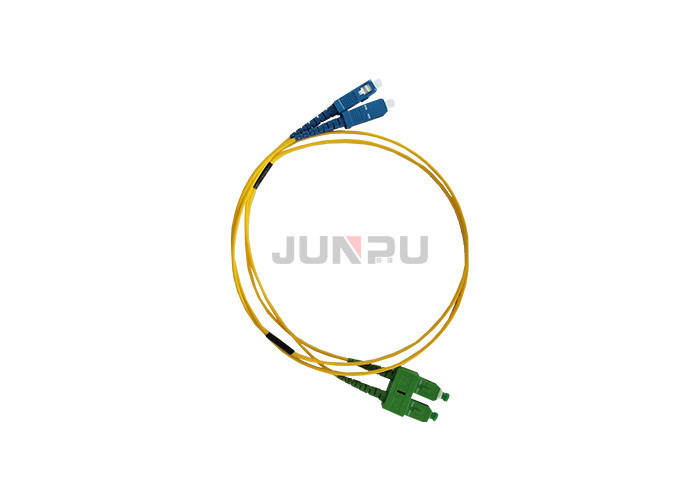

SC APC - SC PC Duplex Fiber Optic Patch Cord
Applications:
Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
