G652D / G657A1 / G657A2 Fiber Optic Patch Cord Cable SC APC To FC PC Duplex

Product Details

Place of Origin: China

Certification: ROHS CE CCC

Model Number: G652D/G657A1/G657A2 SC APC To FC PC Duplex Optical Fiber Patch Cord

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 100000 pieces per week

Get Best Price
Highlight:

fiber optic pigtail

,

fibre optic patch leads

Brand Name:
JUNPU Or OEM
Product Name:
G652D/G657A1/G657A2 SC APC To FC PC Duplex Optical Fiber Patch Cord
Connector:
LC, SC, FC, ST Connector Optional
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Application:
FTTH
Fiber Counts:
Duplex
Ferrule End Face:
APC Or UPC
Brand Name:
JUNPU Or OEM
Product Name:
G652D/G657A1/G657A2 SC APC To FC PC Duplex Optical Fiber Patch Cord
Connector:
LC, SC, FC, ST Connector Optional
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Application:
FTTH
Fiber Counts:
Duplex
Ferrule End Face:
APC Or UPC

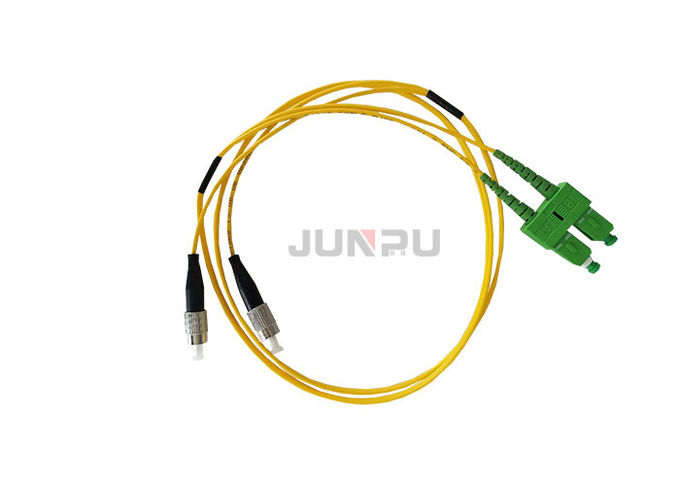

G652D / G657A1 / G657A2 Fiber Optic Patch Cord Cable SC APC To FC PC Duplex



G652D/G657A1/G657A2 SC APC To FC PC Duplex Optical Fiber Patch Cord



Description:

Fiber Pigtails is short optical fiber permanently attached to a source, detector or other fiber optic device at one end and an optical connector at the other .



Applications:

  • FTTH FTTB FTTX Network,
  • Data Center,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipments/TV/LAN/Telecommunication equipments.

Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80


G652D / G657A1 / G657A2 Fiber Optic Patch Cord Cable SC APC To FC PC Duplex 0

G652D / G657A1 / G657A2 Fiber Optic Patch Cord Cable SC APC To FC PC Duplex 1G652D / G657A1 / G657A2 Fiber Optic Patch Cord Cable SC APC To FC PC Duplex 2
