Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: Fiber Patch Cord SC To LC
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 100000 pieces per week
Product Name: |
Fiber Patch Cord SC To LC Duplex Fiber Optic Patch Cord Single Mode |
Connector: |
LC, SC, FC, ST Connector Optional |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
OEM |
Application: |
FTTH, Data Center |
Fiber Counts: |
Duplex |
Ferrule End Face: |
APC Or UPC |
Product Name: |
Fiber Patch Cord SC To LC Duplex Fiber Optic Patch Cord Single Mode |
Connector: |
LC, SC, FC, ST Connector Optional |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
OEM |
Application: |
FTTH, Data Center |
Fiber Counts: |
Duplex |
Ferrule End Face: |
APC Or UPC |

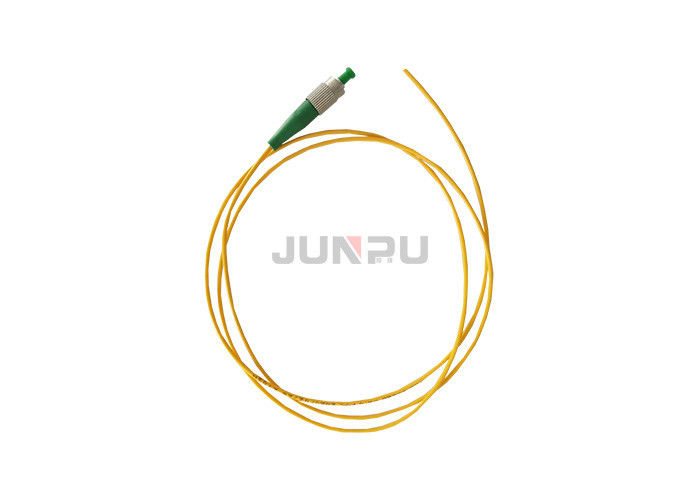

FC APC Fiber Optic Patch Cord, Fiber Optic Patch Cord Supplier
JUNPU Fiber Optical CO. LTD is a manufacturer and industry leader in the design, manufacture, and sale of fiber optic communication products. We have a strong focus on research and development which is integral to the group's business model, and our innovative products are widely used in FTTH, communications, and transportation industries. The company employs nearly three hundred people in production, research, and development teams. The innovative JUNPU company products have received significant customer recognition, resulting in growing profitability. Our research and development team keeps us at the forefront of the industry, allowing us to surpass the expectations of our clients.
Our excellent service is recognized across China.
Our innovation and flexibility allow us to tailor solutions to the diverse needs of a range of industries.
Applications:
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
