Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: SC APC Pigtail Fiber Optic
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 100000 pieces per week
ProductC-APC Fiber Optic Patch Cable Name: |
SC APC Fiber Optic Patch Cord , Fiber Optic Pigtail G657A1 LSZH |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU Or OEM |
Application: |
FTTH, Data Center |
Fiber Counts: |
Simplex Or Duplex |
ProductC-APC Fiber Optic Patch Cable Name: |
SC APC Fiber Optic Patch Cord , Fiber Optic Pigtail G657A1 LSZH |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU Or OEM |
Application: |
FTTH, Data Center |
Fiber Counts: |
Simplex Or Duplex |

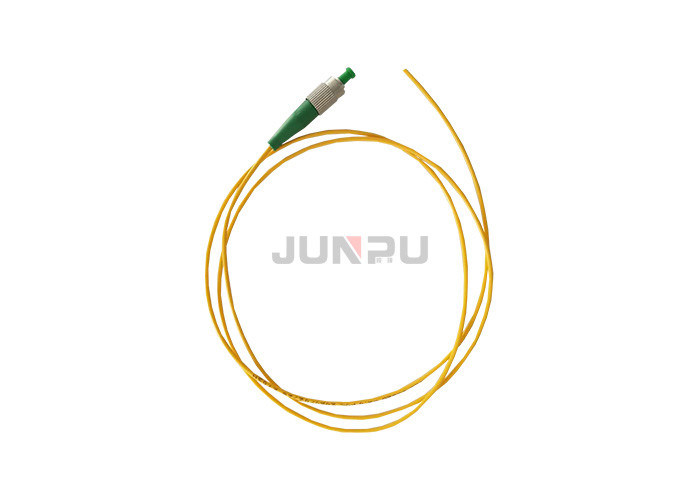

FC Type Fiber Optic Patch Cord, Simplex Fiber Optic Patch Cord 1M 2.0mm
Features:
1. High-quality zirconium dioxide ceramic ferrule.
2. Mature production technology and facility, stable interchangeability, and repeatability.
3. The length, outer diameter, ferrule end face, and adapter are customizable.
4. Low insertion loss, high return loss
5. High-dense connection, easy to operation
6. High credibility and stability
7. Good in repeatability and exchangeability
8. 100% test before shipment
Description:
Fiber Optic Pigtail is important in optical networks. they have the same or different connectors which are installed on the end of fiber optic cable.
The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for deployment.
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
