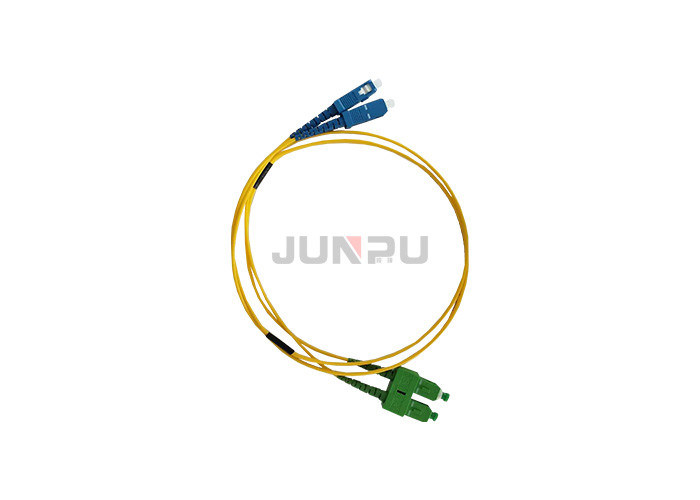

SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M patch cord fiber optic

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: Fiber Patch Cord SC To LC

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 100000 pieces per week

Get Best Price
Highlight:
Product Name:
SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M Patch Cord Fiber Optic
Connector:
LC, SC, FC, ST Connector Optional
Fiber Mode:
G652D/G657A1/G657A2
Length:
As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Brand Name:
OEM
Application:
FTTH, Data Center
Fiber Counts:
Duplex
Ferrule End Face:
APC Or UPC
Product Name:
SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M Patch Cord Fiber Optic
Connector:
LC, SC, FC, ST Connector Optional
Fiber Mode:
G652D/G657A1/G657A2
Length:
As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Brand Name:
OEM
Application:
FTTH, Data Center
Fiber Counts:
Duplex
Ferrule End Face:
APC Or UPC
SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M patch cord fiber optic



SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M Patch Cord Fiber Optic



JUNPU Fiber Optical CO. LTD is a manufacturer and industry leader in the design, manufacture, and sale of fiber optic communication products. We have a strong focus on research and development which is integral to the group's business model, and our innovative products are widely used in FTTH, communications, and transportation industries. The company employs nearly three hundred people in production, research, and development teams. The innovative JUNPU company products have received significant customer recognition, resulting in growing profitability. Our research and development team keeps us at the forefront of the industry, allowing us to surpass the expectations of our clients.



Our excellent service is recognized across China.



Our innovation and flexibility allow us to tailor solutions to the diverse needs of a range of industries.



Applications:

  • FTTH FTTB FTTX Network,
  • Data Center,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipment/TV/LAN/Telecommunication equipment.

Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80


SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M patch cord fiber optic 0SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M patch cord fiber optic 1

SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M patch cord fiber optic 2SC Type Optical Fiber Patch Cord, LSZH, 3.0mm, 1M patch cord fiber optic 3
