Fiber Optic Patch Cord, Duplex/Simplex Fiber Optic Patch Cord Types

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS CE CCC

Model Number: SC APC Pigtail Fiber Optic

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 100000 pieces per week

Get Best Price
Highlight:
Product Name:
FC-APC Fiber Optic Patch Cable, FC-PC Fiber Patch Cord, Yellow And LSZH
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Brand Name:
JUNPU Or OEM
Application:
FTTH, Data Center
Fiber Counts:
Simplex Or Duplex
Product Name:
FC-APC Fiber Optic Patch Cable, FC-PC Fiber Patch Cord, Yellow And LSZH
Fiber Mode:
G652D/G657A1/G657A2
Length:
1m, 2m, 3m, 5m As Your Customeried
Jacket:
PVC/LSZH
Cable OD:
3.0mm, 0.9mm, 2.0mm Or Optional
Brand Name:
JUNPU Or OEM
Application:
FTTH, Data Center
Fiber Counts:
Simplex Or Duplex

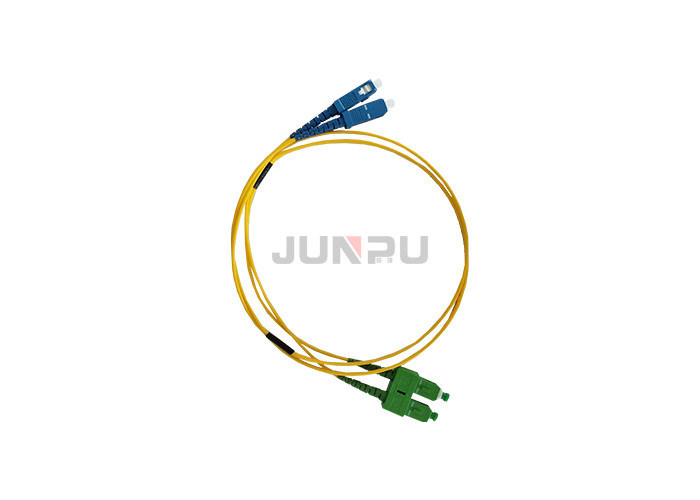

Fiber Optic Patch Cord, Duplex/Simplex Fiber Optic Patch Cord Types

Fiber Optic Patch Cord, Duplex/Simplex Fiber Optic Patch Cord Types



Features:

1. High-quality zirconium dioxide ceramic ferrule.

2. Mature production technology and facility, stable interchangeability, and repeatability.

3. The length, outer diameter, ferrule end face, and adapter are customizable.

4. Low insertion loss, high return loss

5. High-dense connection, easy to operation

6. High credibility and stability

7. Good in repeatability and exchangeability

8. 100% test before shipment



Description:

Fiber Optic Pigtail is important for the optical network. They have the same or different connectors installed on the end of the fiber optic cable.

The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for deployment.



Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80




Applications:

  • FTTH FTTB FTTX Network,
  • Data Center,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipment/TV/LAN/Telecommunication equipment

Fiber Optic Patch Cord, Duplex/Simplex Fiber Optic Patch Cord Types 0

Fiber Optic Patch Cord, Duplex/Simplex Fiber Optic Patch Cord Types 1
