Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: SC APC Pigtail Fiber Optic
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 100000 pieces per week
Product Name: |
SC APC-SC UPC Fiber Optic Patch Cord |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU Or OEM |
Application: |
FTTH, Data Center |
Fiber Counts: |
Simplex Or Duplex |
Product Name: |
SC APC-SC UPC Fiber Optic Patch Cord |
Fiber Mode: |
G652D/G657A1/G657A2 |
Length: |
1m, 2m, 3m, 5m As Your Customeried |
Jacket: |
PVC/LSZH |
Cable OD: |
3.0mm, 0.9mm, 2.0mm Or Optional |
Brand Name: |
JUNPU Or OEM |
Application: |
FTTH, Data Center |
Fiber Counts: |
Simplex Or Duplex |

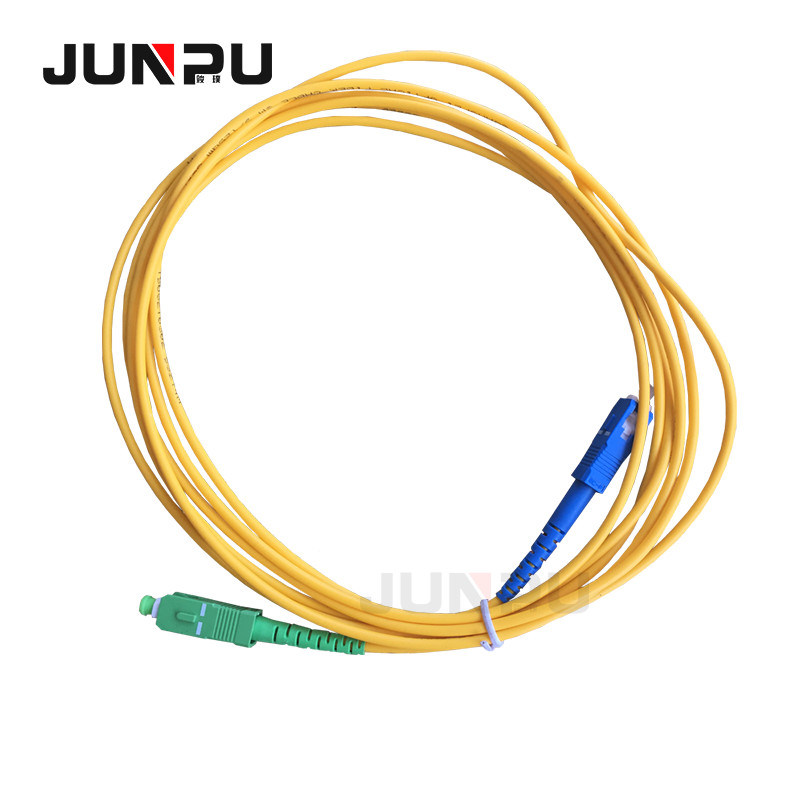

SC APC-SC UPC Fiber Optic Patch Cord Single Mode Simplex 3M
Description:
Fiber optic patch cords consist of a core with a high refractive index surrounded by a coating with a low refractive index, reinforced with aramid yarn, and wrapped in a protective jacket. The transparency of the core allows loss-free transmission of optical signals over long distances. The low refractive index coating also reflects light back into the core, minimizing signal loss. In addition, the aramid yarn and the protection of the outer jacket minimize physical damage to the core and coating.
fiber optic patch cables are used in two major application areas: computer workstations to outlet and patch panels or optical cross-connect distribution centers. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for deployment.
Features:
Applications:
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
More pictures:
Other Patch Cord Series:
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
