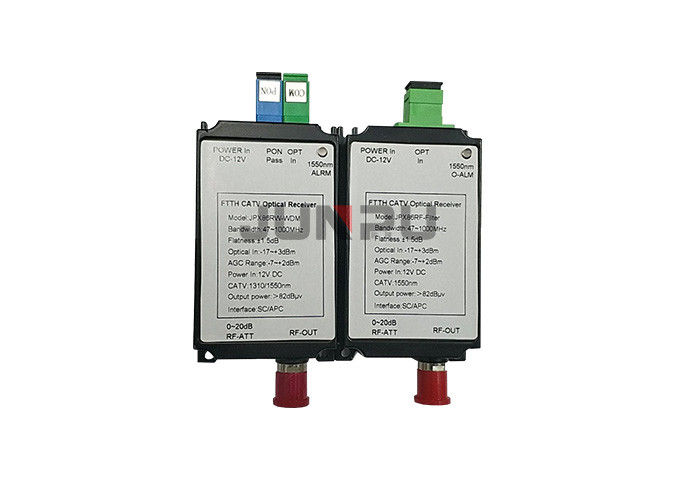

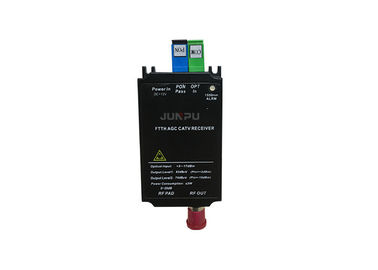

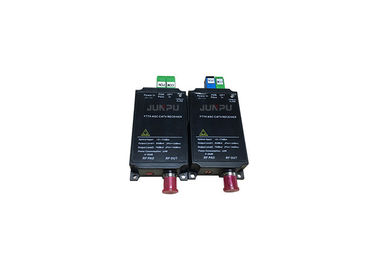

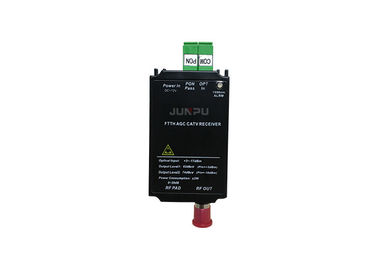

Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case

Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case
Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case

Large Image :  Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JPX86RW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000Pieces Per Month
Detailed Product Description
Product Name: FTTH 12v Mini Optical Node With Wdm Optical Receiver Application: FTTH FTTB FTTX Network
Receiving Power: -1 ~ -20dbm(digital) Output Ports: 1 Output
Fiber Connector: SC, SC APC, LC, FC Output Level: 82dbuv
With Wdm: YES Working Wavelength: 1550/1490/1310nm
Power Supply: DC12V OEM: YES
High Light:

ftth optical node

,

ftth catv receiver

Junpu FTTH 12v Mini Optical Node With Wdm Optical Receiver In Metal Case



Description:

  • JPX86RW adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RW has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RW FTTH optical terminal can add isolator for only receiving the 1550nm optical.



FTTH Diagram:

Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 0



Details:



Parameter Specification
Product Name FTTH 12v Mini Optical Node With Wdm Optical Receiver
Working Wavelength output 1550nm--RF; output 1490/1310--ONU
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Inside Module WDM module



      Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 1

Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 2Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 3Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 4

Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 5



Technical Specification:



Item Unit
Optical Parameters
Optical Wavelength nm 1290~1600
Optical Input Range dBm -17~+3
AGC Control Range dB -7~+2
Optical Return Loss dB ≥45
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
  Output Voltage V DC12V
Power Consumption W <3
Working Temp -20~+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)



Workshop:



Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 6

Network 12v Mini Node FTTH Optical Receiver With Wdm In Metal Case 7





We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
