Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JPX86RW

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000Pieces Per Month

Get Best Price
Highlight:

ftth optical node

,

ftth catv receiver

Product Name:
Wdm Catv FTTH Agc Optical Node
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1550/1490/1310nm
Power Supply:
DC12V
OEM:
YES
Product Name:
Wdm Catv FTTH Agc Optical Node
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1550/1490/1310nm
Power Supply:
DC12V
OEM:
YES
Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project

Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project



Description:

  • JPX86RW adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RW has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RW FTTH optical terminal can add isolator for only receiving the 1550nm optical.



FTTH Diagram:

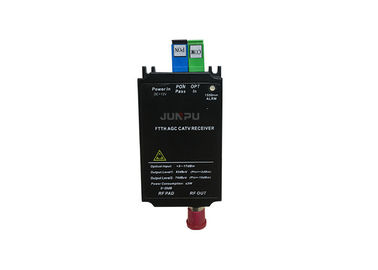

Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 0



Details:



Parameter Specification
Product Name Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V
Working Wavelength output 1550nm--RF; output 1490/1310--ONU
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Inside Module WDM module

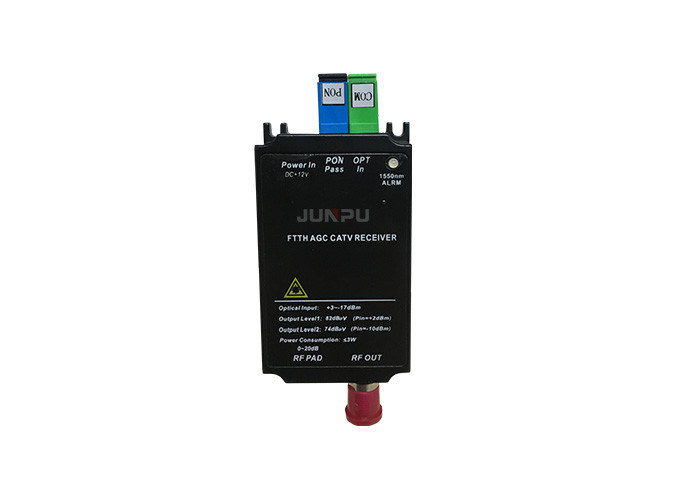

      Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 1

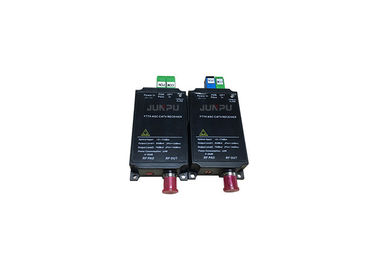

Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 2Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 3Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 4Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 5

Junpu Mini Wdm Catv FTTH Agc Optical Node SC UPC 12V For Triple Play Project 6



Technical Specification:



Item Unit
Optical Parameters
Optical Wavelength nm 1290~1600
Optical Input Range dBm -17~+3
AGC Control Range dB -7~+2
Optical Return Loss dB ≥45
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
  Output Voltage V DC12V
Power Consumption W <3
Working Temp -20~+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)
