FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU

China FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU supplier
FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU supplier FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU supplier

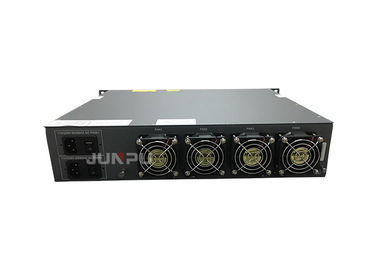

Large Image :  FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP6419EAP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 1000 Pieces Per Month
Contact Now
Detailed Product Description
Product Name: FTTH Wdm Edfa 19dbm Pon 64 Port 1550nm Optical Amplifier Number Of Outputs: 64,32,16,08
CATV Input: 1 Or 2 Port CATV Operation Wavelength: 1540 ~ 1563nm
Application: FTTH, Triple Play Network, GPON, EPON Per Port Output Optical Power: 15,16,17,18,19,20,21,22,23dbm
CATV Input Power: -10 ~ +10dbm OEM: Yes
Size: 2U Rack

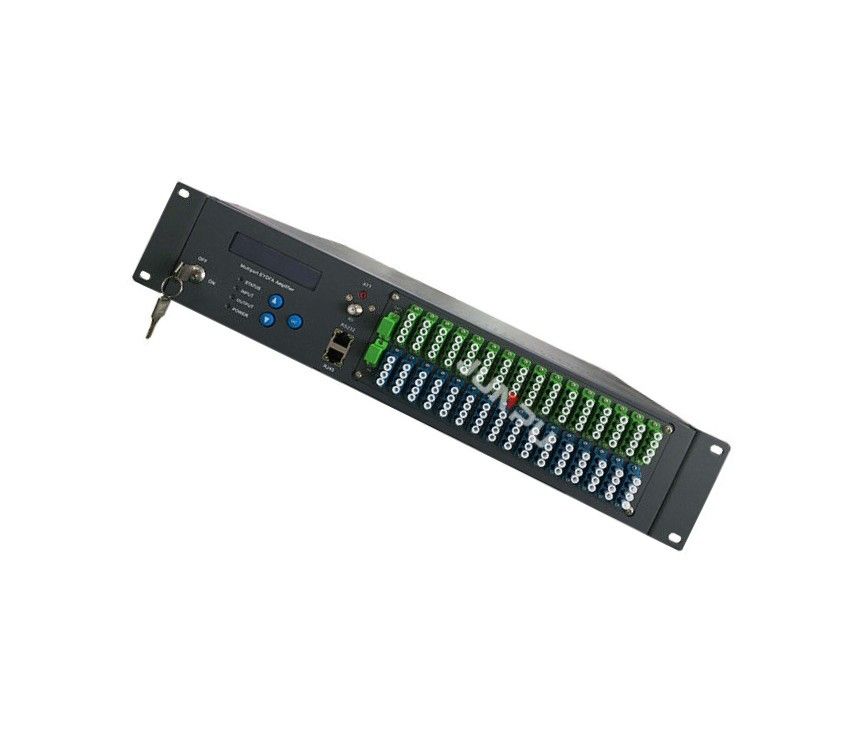

Junpu FTTH Wdm Edfa 19dbm Pon 64 Port 1550nm Optical Amplifier JDSU



Description:

  • JP6419EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
  • JP6419EAP optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.



FTTH Diagrm:

FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



Product Features:

  • 1540~1565nm operating bandwidth for optical amplifier
  • Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
  • Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
  • Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
  • Multi- ports output, can built in 1310/1490/1550WDM
  • Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
  • Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
  • With laser key to turn on/off the laser
  • Led displays the working condition of the machine
  • Dual power hot plug power supply for choice, 90V~250V AC or -48V DC



Details:

Parameter Specification
Product Name FTTH Wdm Edfa 19dbm Pon 64 Port 1550nm Optical Amplifier
Working Wavelength Mixed output 1490/1310/1550nm
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Combine Port: SC APC

Output Optical Power 15,16,17,18,19,20dbm  (customized)





FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



Technical Specification:



Performance Index Supplement
Min. Typ. Max.

Optical

feature

CATV operation wavelength (nm) 1540   1565 CATV
OLT pass wavelength (nm)   1310/1490
CATV pass wavelength loss (dB)     0.8 1550nm
OLT pass wavelength loss (dB)     0.8 1310/1490nm
CATV input power (Pi) (dBm) -10   +10
Number of output ports (pcs)     64
Each port output power (dBm) 0   13 ~22dbm 19
Difference of each output power (dB) -0.5   +0.5
Output optical power monitoring (dB)   -20
Output power adjustable range (dBm) -3   0
Noise figure (dB)   4.5 5.0
  5.0 6.0
Polarization dependence loss (dB)     0.3
Polarization dependence gain (dB)     0.4
Polarization mode dispersion (ps)     0.3



Workshop

FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



Other EDFA WDM Series:





FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



   FTTH Gpon EDFA WDM Optical Amplifier 19dbm Pon 64 Port 1550nm JDSU



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
