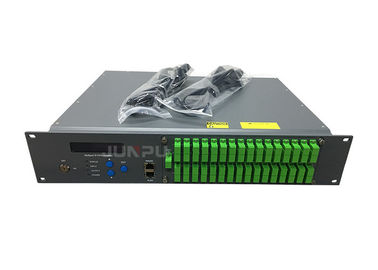

1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port

1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port
1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port

Large Image :  1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP3223EAP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: 1540 ~ 1563nm PON CATV EDFA WDM Combiner 32 Ports Of 23dbm Per Port Number Of Outputs: 32 Ports
CATV Input: 1 Or 2 Port CATV Operation Wavelength: 1540 ~ 1563nm
Application: FTTH, Triple Play Network, GPON, EPON Per Port Output Optical Power: 15,16,17,18,19,20,21,22,23dbm
CATV Input Power: -10 ~ +10dbm OEM: Yes
Size: 2U Rack
High Light:

high power optical amplifier

,

optical combiner



1540 ~ 1563nm PON CATV EDFA WDM Combiner 32 Ports Of 23dbm Per Port



Product Features:



  • Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
  • Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
  • With laser key to turn on/off the laser
  • Led displays the working condition of the machine
  • Dual power hot plug power supply for choice, 90V~250V AC or -48V DC

Description:

  • JP3223EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
  • JP3223EAP optical amplifier can be compatible with any FTTx PON Technology.
  • It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.



  • 1540~1565nm operating bandwidth for optical amplifier
  • Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
  • Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
  • Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
  • Multi- ports output, can built in 1310/1490/1550WDM



FTTH Diagram:

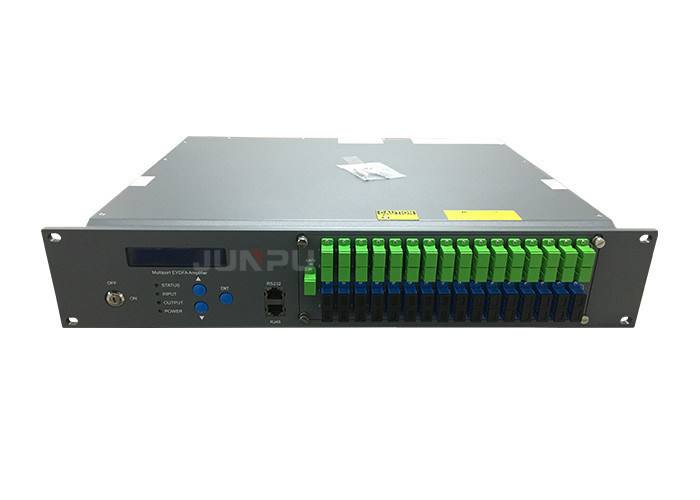

1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 0







Details:

Parameter Specification
Product Name 32 Outputs FTTH Gpon 1550 Edfa WdmOptical Amplifier 20dBm -10 ~ +10dbm
Working Wavelength Mixed output 1490/1310/1550nm
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Combine Port: SC APC

Output Optical Power 15,16,17,18,19,20,21,22,23dbm  (customized)





1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 1



1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 2



1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 3



1540-1563nm PON CATV FTTH Gpon EDFA WDM Combiner 32 Ports Of 23dbm Per Port 4



Technical Specification:



Performance Index Supplement
Min. Typ. Max.

Optical

feature

CATV operation wavelength (nm) 1540   1565 CATV
OLT pass wavelength (nm)   1310/1490
CATV pass wavelength loss (dB)     0.8 1550nm
OLT pass wavelength loss (dB)     0.8 1310/1490nm
CATV input power (Pi) (dBm) -10   +10
Number of output ports (pcs)     32 4/8/16/62/64
Each port output power (dBm) 0   13 ~23dbm 23dbm
Difference of each output power (dB) -0.5   +0.5
Output optical power monitoring (dB)   -20
Output power adjustable range (dBm) -3   0
Noise figure (dB)   4.5 5.0
  5.0 6.0
Polarization dependence loss (dB)     0.3
Polarization dependence gain (dB)     0.4
