GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

China GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting supplier

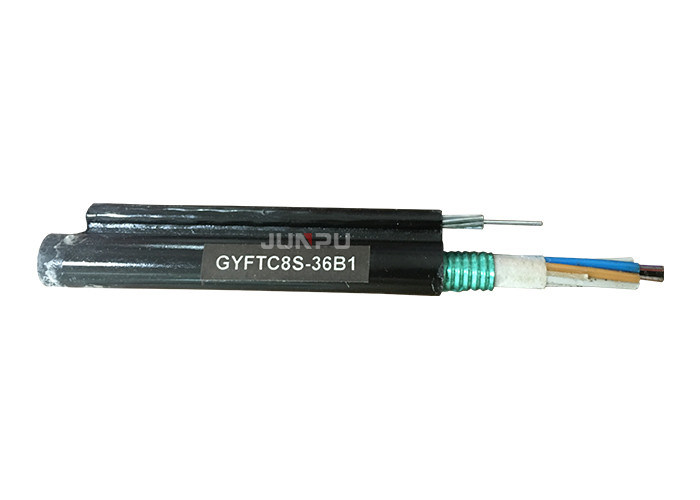

Large Image :  GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: Outdoor Figure 8 Core Fiber Optical Cable

Payment & Shipping Terms:

Packaging Details: wooden reel of self supporting GYTC8S figure 8 fiber optical cable
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T
Supply Ability: 30000 Kilometer/Kilometers per Week
Contact Now
Detailed Product Description
Application: Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise Fiber Type: G652D,OM3,G657A2,50/125,62.5/125
Number Of Conductors: ≥ 10 Fiber Count: 1-144 Core
Jacket Material: PE,LSZH Product Name: Outdoor Figure 8 Core Fiber Optical Cable
Loose Tube Material: PBT Package: 2km/roll
Strength Member: Steel Wire



GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self-supporting


Decsripttion

  • 2 4 6 8 12 core corning G652D G655 G657A outdoor armoured single multi mode self supporting GYTC8S figure 8 fiber optical cable.

    GYTC8S is a typical outdoor use fiber optic cable for aerial applications; GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8.

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting



Application

  • Mainly adopted to the conditions that with the laying method of aerial and the span under 100m, speeding up the installation, and saving the messenger wire and optic cable pothhook.

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Optical Characteristics

Strength Member

Dimension

2.4(0.8*7)mm

Material

Steel Wire

Outer Sheath

Dimension

(9.2±0.3)mm×(16.5±0.5)mm(4-24F)

(9.6±0.3)mm×(16.9±0.5)mm(36F)

(10.1±0.5)mm×(17.4±0.7)mm(48F/60F)

(10.7±0.5)mm×(18.0±0.7)mm(72F)

(12.2±0.5)mm×(19.5±0.7)mm(96F)

(14.8±0.5)mm×(22.1±0.7)mm(144F)

Material

PE

Color

Black

Fiber Attenuation Coefficient in Cable

dB/km(1310nm)

≤0.36dB/km

dB/km(1550nm)

≤0.22dB/km

No.

Characteristics

Parameter value

1

Tensile Strength

Short Term

2700N

Long Term

900N

2

Crush Resistance Strength (N/100mm)

Short Term

1000N

Long Term

300N

3

Min. Bending Radius (mm)

Dynamic

20D

Static

10D

4

Temperature Range

-40~+60°C

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Package
GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting
GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting
