Home > products > Outdoor Fiber Optic Cable > Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable

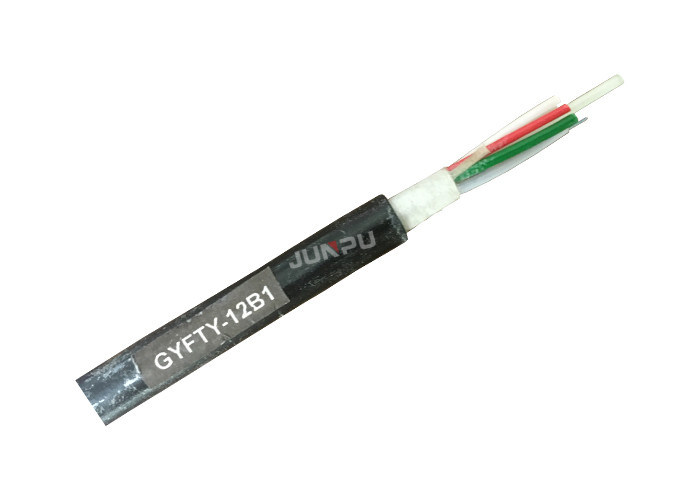

Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: Outdoor Cable GYFTY 4 Core Multimode Fiber Optic Cable

Payment & Shipping Terms

Packaging Details: exporting drum reel, central with foam protection, outer with poly board, and with steel tape wrapping Port

Delivery Time: 1 ~ 10 Working days based on the quantity

Payment Terms: T/T

Supply Ability: 1000 Kilometer/Kilometers per Week

Get Best Price
Highlight:

single mode outdoor fiber cable

,

armoured cable outdoor

Application:
Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber Type:
G652D,OM3,G657A2,50/125,62.5/125
Number Of Conductors:
≥ 10
Fiber Count:
1 ~ 144 Core
Jacket Material:
PE,LSZH
Product Name:
Outdoor Cable GYFTY 4 Core Multimode Fiber Optic Cable
Strength Member:
FRP Strength Member
Package:
2km/roll
Cable Type:
Non-metallic
Application:
Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber Type:
G652D,OM3,G657A2,50/125,62.5/125
Number Of Conductors:
≥ 10
Fiber Count:
1 ~ 144 Core
Jacket Material:
PE,LSZH
Product Name:
Outdoor Cable GYFTY 4 Core Multimode Fiber Optic Cable
Strength Member:
FRP Strength Member
Package:
2km/roll
Cable Type:
Non-metallic
Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable

Non Metallic Outdoor Cable GYFTY 4 Core Multimode Fiber Optic Cable


Decsripttion

  • GYFTY, the fiber 250um, are position in loose tube made of a high modulus plastic. The tubes are filled with water-resistant filling compound. A fiber reinforced plastic(FRP) located in a center of core as a non metallic strength member. The tubes(fibers) are stranded around the strength member into a compact and circular core. After the clable core is filled with filling compound to protect it from water ingress, the cable is completed with PE sheath.

Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable 0Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable 1

Features

  • All dielectric,no metal element,suitable for high electromagnetism environment
  • Non-metal strength has an excellent anti-electromagnet ability
  • Central FRP rod is non-metal strength member
  • Filler protect loose tuber fiber
  • Fiber counl: 1-144



Application

  • Duct, aerial


Optical Characteristics

Fiber count
Available cable diameter (mm)
Cable weight (kg/km)
Tensile strength
long/short term(N)
Crush resistance
long/short term
(N/100mm)
2-36
11.4
108
500/1000
300/1000
2-72
12.8
134
600/1500
300/1000
2-48
12.8
140
1000/3000
300/1000
50-96
14.8
176
1000/3000
300/1000
98-120
17.1
226
1000/3000
300/1000
122-144
19.2
279
1000/3000
300/1000

Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable 2

Package
Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable 3
Non Metallic Outdoor Fiber Optic Cable GYFTY 4 Core Multimode Fiber Cable 4

We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
