10 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores

large.img.alt
small.img.alt small.img.alt

Large Image :  10 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS CE CCC
Model Number: mpo patch cord
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 1000 pieces per week
Detailed Product Description
Product Name: 10meters MPO To LC Male OM3 Fan Out Fiber Optic Patch Cord Mpo Lc 8Cores Connector: SC, LC,FC
Length: 1m, 2m, 3m, 5m Jacket: PVC/LSZH
Cable OD: 3.0mm, 0.9mm, 2.0mm Connector Type: PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST Or Hybrid
Application: FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments Fan Out Length: 25",36" Or Customized
High Light:

fiber optic pigtail

,

fibre optic patch leads

10meters MPO to LC Male OM3 Fan Out Fiber Optic Patch cord mpo lc 8Cores



Applications:

  • FTTH FTTB FTTX Network,
  • FTTA FTTH BBU RRU RRH LTE &
  • Base station,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipments/TV/LAN/Telecommunication equipments



Specification:

tems Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insertion Loss <0.2dB <0.3dB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Durability <0.1dB typical change,
500 matings
Operating Temperature -40 to +75°C -40 to +75°C
Ferrule Hole Sizes 125.0+1/-0um, Conentricity:≤1um 125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um 127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um 128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um



Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /



Features:

  • MTP/Mpo patch cord Description:
  • Optical fiber Patch cord
  • The MPO / MTP AOC assemblies are installed in active optical cable, such as QSFP / QDR / CXP. Utilizing MPO / MTP Ferrule and FA to assemble the mini high speed connect patchcord.
  • Optical Fiber Cable From 2core to 24core
  • Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
  • Low loss patch cord

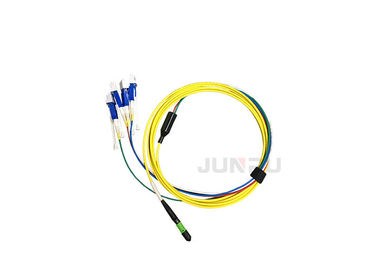

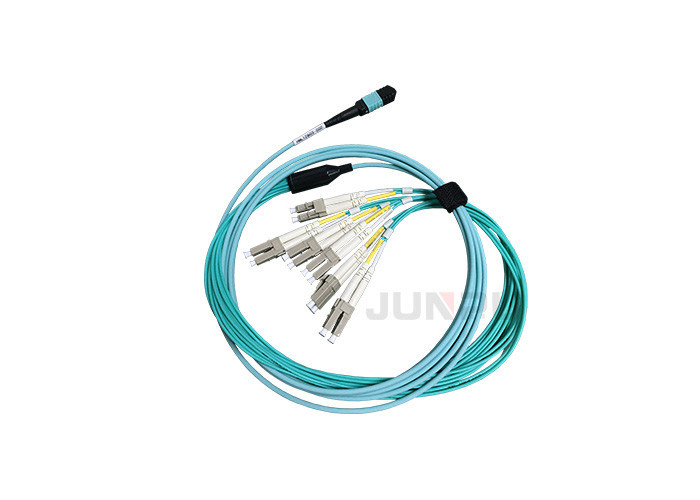

10 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores 0

10 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores 110 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores 2



Other Patch Cord Series:

10 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores 310 Meters Single Mode Patch Cord MPO To LC Male OM3 Fan Out Mpo Lc 8 Cores 4
