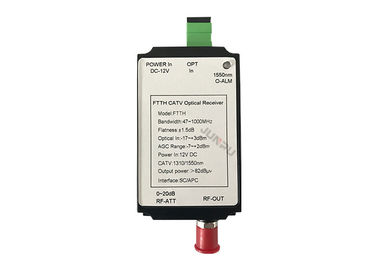

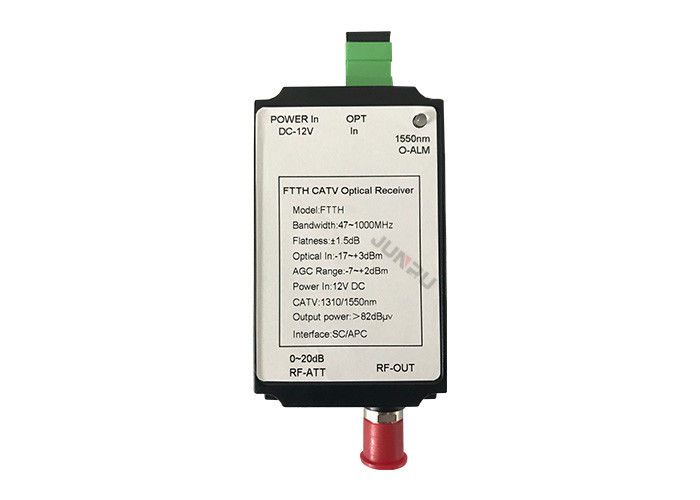

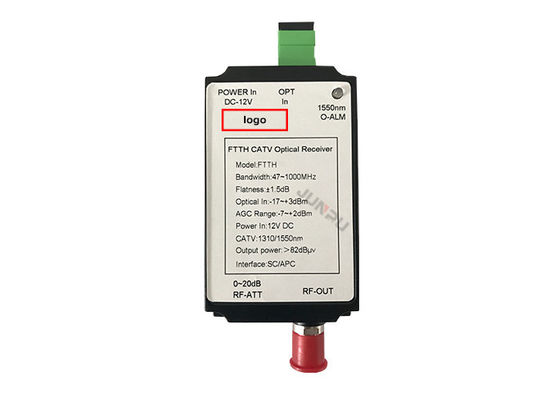

Ftth Catv Optical Receiver With AGC Wdm , Indoor Ftth Optical Node

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JPX86RG

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000Pieces Per Month

Get Best Price
Highlight:

ftth catv optical receiver

,

ftth catv receiver

Product Name:
Catv Optical Receiver Agc FTTH
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1100 ~ 1600nm
Power Supply:
DC12V
OEM:
YES
Product Name:
Catv Optical Receiver Agc FTTH
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1100 ~ 1600nm
Power Supply:
DC12V
OEM:
YES
Ftth Catv Optical Receiver With AGC Wdm , Indoor Ftth Optical Node

Junpu Catv Optical Receiver Agc FTTH Applied For Pure Catv Network



Description:

  • JPX86RG adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RG has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RG FTTH optical terminal can add isolator for only receiving the 1550nm optical.



Details:



Parameter Specification
Product Name Catv Optical Receiver Agc FTTH
Working Wavelength 1100 ~ 1600nm
Connector Type Catv port: SC APC
Inside Module AGC



FTTH Diagrm:

Ftth Catv Optical Receiver With AGC Wdm , Indoor Ftth Optical Node 0









      Ftth Catv Optical Receiver With AGC Wdm , Indoor Ftth Optical Node 1Ftth Catv Optical Receiver With AGC Wdm , Indoor Ftth Optical Node 2



Technical Specification:



Item Unit
Optical Parameters
Optical Wavelength nm 1290~1600
Optical Input Range dBm -17~+3
AGC Control Range dB -7~+2
Optical Return Loss dB ≥45
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
  Output Voltage V DC12V
Power Consumption W <3
Working Temp -20~+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)
