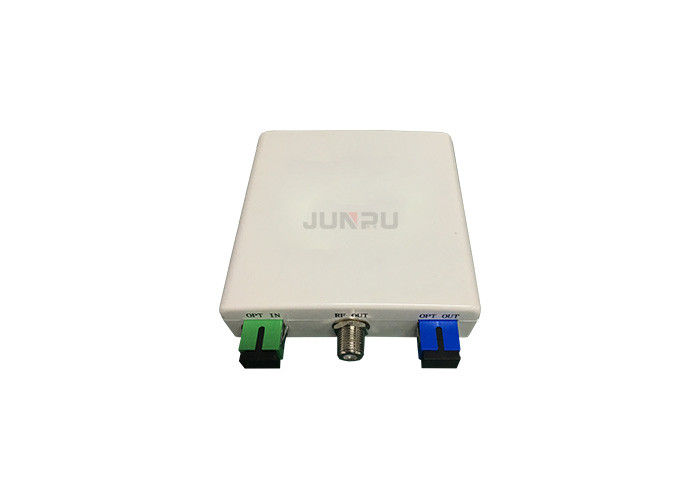

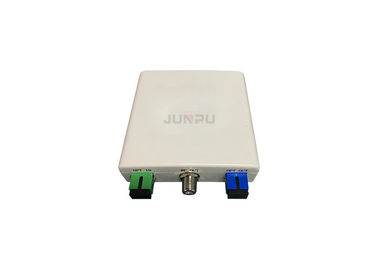

Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output

Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output
Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output

Large Image :  Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JPXP86RW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000Pieces Per Month
Detailed Product Description
Product Name: Ftth Optical Node Application: HFC&CATV&FTTX
Receiving Power: -1 ~ -20dbm(digital) Output Ports: 1 Output
Fiber Connector: SC, SC APC, LC, FC Output Level: 68dbuv
With Wdm: YES Working Wavelength: 1550/1490/1310nm
Power Supply: Without Power Supply OEM: YES
Bandwidth: 45-862MHz/1000MHz
High Light:

ftth catv optical receiver

,

ftth optical node


FTTH Passive Wdm Catv Optical Receiver Node

Description:

  • JPXP86RW adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RW has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RW FTTH optical terminal can add isolator for only receiving the 1550nm optical.

Details:


Parameter Specification
Product Name FTTH Passive Wdm Catv Optical Receiver Node
Working Wavelength output 1550nm--RF; output 1490/1310--ONU
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Inside Module WDM module


Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output 0
Technical Specification:



Item Unit
Optical Parameters
CATV Optical Wavelength nm 1540~1563
Optical Input Range dBm -14~+2
Pass wavelength dB 1310, 1490
Optical Return Loss dB ≥55
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 45~1050
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5



Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output 1Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output 2

FTTH Diagrm:
Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output 3

Test:

Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output 4
Passive FTTH Optical Receiver , Wdm Catv Optical Receiver Node 1 Output 5


We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
