WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JPX86RW

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000Pieces Per Month

Get Best Price
Highlight:

ftth catv optical receiver

,

ftth optical node

Product Name:
Ftth Catv Optical Receiver
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1550/1490/1310nm
Power Supply:
DC12V
OEM:
YES
Product Name:
Ftth Catv Optical Receiver
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1550/1490/1310nm
Power Supply:
DC12V
OEM:
YES
WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network

Junpu FTTH Catv Wdm Optical Node ReceiverSC APC 12V Used For Gpon Triple Play Network



Description:

  • JPX86RW adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RW has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RW FTTH optical terminal can add isolator for only receiving the 1550nm optical.



FTTH Diagram:

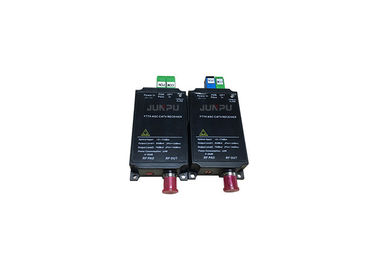

WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 0



Details:



Parameter Specification
Product Name FTTH Catv Wdm Optical Node ReceiverSC APC 12V Used For Gpon
Working Wavelength output 1550nm--RF; output 1490/1310--ONU
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC

Inside Module WDM module

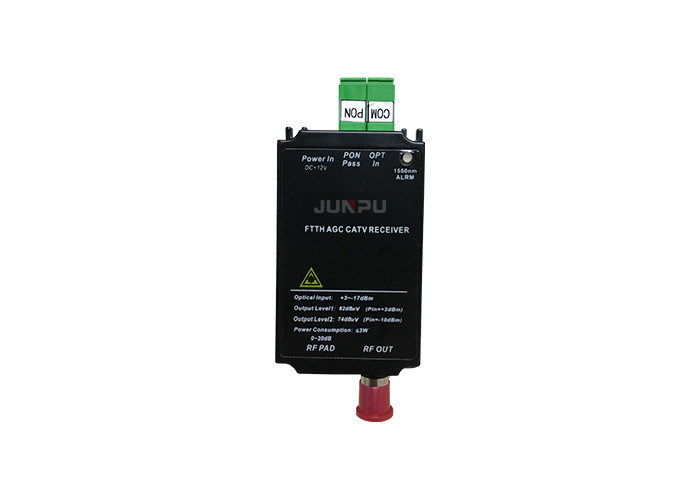

      WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 1

WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 2WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 3WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 4WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 5

WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 6



Technical Specification:



Item Unit
Optical Parameters
Optical Wavelength nm 1290~1600
Optical Input Range dBm -17~+3
AGC Control Range dB -7~+2
Optical Return Loss dB ≥45
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
  Output Voltage V DC12V
Power Consumption W <3
Working Temp -20~+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)



Workshop:



WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 7

WDM Catv FTTH Optical Receiver Node SC APC 12V Used For Gpon Triple Play Network 8





We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
