Outdoor AGC Hfc Fiber Node , Fiber Optic Node Catv 860 2 Ports Output 220V

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP2GOR

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 5000 Pieces Per Month

Get Best Price
Highlight:

catv optical node

,

optical catv receiver

Product Name:
HFC AGC Optical Node Catv Outdoor
Application:
HFC
Wavelength:
1100 - 1600nm
Input Power:
-8dBm ~ +2dBm
Bandwidth:
40~862MHz&1006MHz
With Return Path:
Customized
Power Supply:
AC35-AC90V&AC140V~265V
RF Output Level:
102,104,106dbuv
OEM:
YES
MOQ:
1
Product Name:
HFC AGC Optical Node Catv Outdoor
Application:
HFC
Wavelength:
1100 - 1600nm
Input Power:
-8dBm ~ +2dBm
Bandwidth:
40~862MHz&1006MHz
With Return Path:
Customized
Power Supply:
AC35-AC90V&AC140V~265V
RF Output Level:
102,104,106dbuv
OEM:
YES
MOQ:
1
Outdoor AGC Hfc Fiber Node , Fiber Optic Node Catv 860 2 Ports Output 220V

Junpu HFC AGC Optical Node Catv Outdoor 860 2 Ports Output 220V



Description:

  • JP2GOR optical receiver is an outdoor 2 outputs and waterproofing receiver. It is mainly used in the FTTB network that can realize the analog and digital signal to the users. It can work together with ONU or EOC to realize the network convergence. JP-2GOR AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.



Product Features:



  • High quality waterproof aluminum shell, waterproof grade standard to IP65.
  • Beautiful double shield panel, ensure good EMC index
  • AGC Control range of AGC + 2 ~ 8dBm
  • Using T type +E anti surge lightning protection circuit, effectively prevent power damage.
  • SC/APC or FC/APC optical connector, Female or male RF connector.
  • Support 220V/60V power supply





Details:



Parameter Specification
Product Name HFC AGC Optical Node Catv Outdoor
Input Range Power -8 ~ +2dBm

Bandwidth

45 ~ 862Mhz&1006MHz

RF output level

102,104,106dbuv

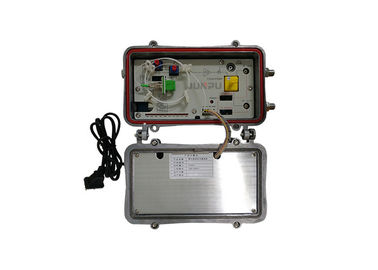

Outdoor AGC Hfc Fiber Node , Fiber Optic Node Catv 860 2 Ports Output 220V 0

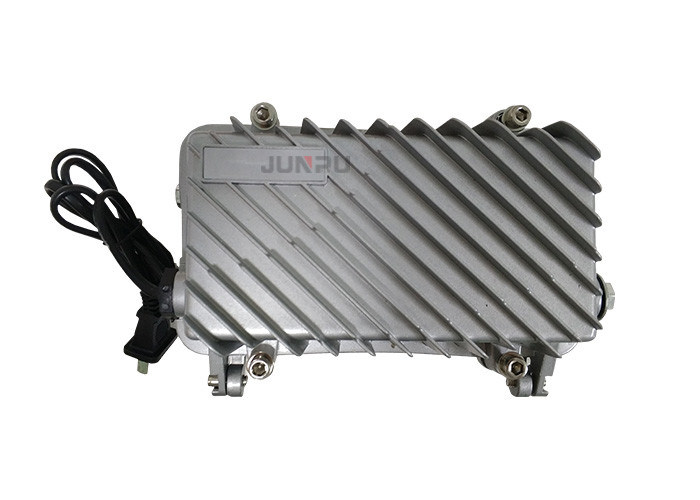

Outdoor AGC Hfc Fiber Node , Fiber Optic Node Catv 860 2 Ports Output 220V 1



Technical Specification:


Index JP-2GOR
Wavelength 1100-1600nm
Optical input power -8dBm~+2dBm
AGC control range -8dBm~+2dBm
Optical return loss >45dB
Optical connector FC/APC&SC/APC
Bandwidth 40~750&862&1006MHz
Flatness ±0.75dB@40-750MHz ±1dB@40-860&1000MHz
Output return loss ≥16dB@40-550MHz ≥14dB @550-750&860&1000MHz
Gain adjustable range 0-20dB
Slope adjustable range 0-18dB
Impedance 75Ω
CN(note 3) ≥51dB
CTB(note 3) ≥65dB
CSO(note 3) ≥62dB
Power supply AC35-AC90V&AC140V~265V or customize
Power supply way

220V@Chinese Outlet with 1m power cord

60V@G283 independent power supply port

Mainboard voltage +24V&+8V
Working temperature -25℃~+55℃ or customize
Consumption ≤10w
Size 210x165x90mm(220V) & 225x160x90mm(60V)

Workshop:
Outdoor AGC Hfc Fiber Node , Fiber Optic Node Catv 860 2 Ports Output 220V 2

Outdoor AGC Hfc Fiber Node , Fiber Optic Node Catv 860 2 Ports Output 220V 3


We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
