Name: Outdoor HFC 4 Outputs Fiber Optic Node Receiver With AGC Control 104dbuv
Brand: JUNPU
SKU: JP4GOR
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (129 reviews)

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP4GOR

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 5000 Pieces Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                catv optical node, optical catv receiver


Product Name:	Hfc 4 Outputs Optical Receiver	Application:	HFC
Wavelength:	1100 - 1600nm	Input Power:	-8dBm ~ +2dBm
Bandwidth:	40~862MHz&1006MHz	With Return Path:	Customized
Power Supply:	AC35-AC90V&AC140V~265V	RF Output Level:	102,104,106dbuv
OEM:	YES	MOQ:	1

Product Name:	Hfc 4 Outputs Optical Receiver
Application:	HFC
Wavelength:	1100 - 1600nm
Input Power:	-8dBm ~ +2dBm
Bandwidth:	40~862MHz&1006MHz
With Return Path:	Customized
Power Supply:	AC35-AC90V&AC140V~265V
RF Output Level:	102,104,106dbuv
OEM:	YES
MOQ:	1

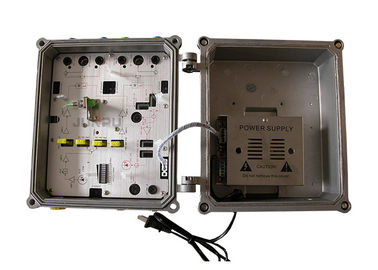

Outdoor HFC 4 Outputs Fiber Optic Node Receiver With AGC Control 104dbuv

Junpu HFC 4 Outputs Outdoor Optical Receiver Node With AGC Control 104dbuv

Description:

JP4GOR optical receiver is an outdoor 4 outputs and waterproofing receiver. It is mainly used in the FTTB network that can realize the analog and digital signal to the users. It can work together with ONU or EOC to realize the network convergence. JP-4GOR AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.

Product Features:

High quality waterproof aluminum shell, waterproof grade standard to IP65.
Beautiful double shield panel, ensure good EMC index
AGC Control range of AGC + 2 ~ 8dBm
Using T type +E anti surge lightning protection circuit, effectively prevent power damage.
SC/APC or FC/APC optical connector, Female or male RF connector.
Support 220V/60V power supply

Details:

Parameter	Specification
Product Name	HFC 4 Outputs Outdoor Optical Receiver Node With AGC Control 104dbuv
Input Range Power	-8 ~ +2dBm
Bandwidth	45 ~ 862Mhz&1006MHz
RF output level	102,104,106dbuv

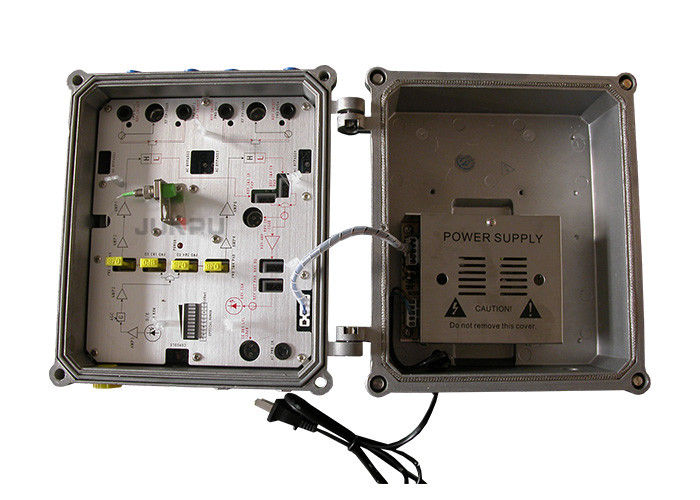

Outdoor HFC 4 Outputs Fiber Optic Node Receiver With AGC Control 104dbuv 0

Technical Specification:

Index	JP4GOR
Wavelength	1100-1600nm
Optical input power	-8dBm~+2dBm
AGC control range	-8dBm~+2dBm
Optical return loss	>45dB
Optical connector	FC/APC&SC/APC
Bandwidth	40~750&862&1006MHz
Flatness	±0.75dB@40-750MHz ±1dB@40-860&1000MHz
Output return loss	≥16dB@40-550MHz ≥14dB @550-750&860&1000MHz
Gain adjustable range	0-30dB
Slope adjustable range	0-18dB
Impedance	75Ω
CN(note 3)	≥51dB
CTB(note 3)	≥65dB
CSO(note 3)	≥62dB
Return path wavelength	1310nm&1550nm
Return path bandwidth	5-30MHz&42MHz&65MHz(max:200MHz)
Return path output power	1&2@1310nm or customize
Return path flatness	±0.75dB
Power supply	AC35-AC90V&AC140V~265V or customize
Power supply way	220V@Chinese Outlet with 1m power cord 60V@G283 independent power supply port
Mainboard voltage	+24V&+8V
