FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP2GORP

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 5000 Pieces Per Month

Get Best Price
Highlight:

catv optical node

,

fiber optic node receiver

Product Name:
Outdoor Optical Node With Return Path
Application:
HFC
Wavelength:
1100 - 1600nm
Input Power:
-8dBm ~ +2dBm
Bandwidth:
40~862MHz&1006MHz
With Return Path:
Customized
Power Supply:
AC35-AC90V&AC140V~265V
RF Output Level:
102,104,106dbuv
OEM:
YES
MOQ:
1
Product Name:
Outdoor Optical Node With Return Path
Application:
HFC
Wavelength:
1100 - 1600nm
Input Power:
-8dBm ~ +2dBm
Bandwidth:
40~862MHz&1006MHz
With Return Path:
Customized
Power Supply:
AC35-AC90V&AC140V~265V
RF Output Level:
102,104,106dbuv
OEM:
YES
MOQ:
1
FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path

Junpu HFC Equipment 2 Ports Outdoor Optical Node With Return Path



Description:

  • JP2GORP series optical receiver mainly used in trunk and lateral optical fiber network, it can supply high quality Videos and data service. It is full-featured product, has excellent index and high reliability, and is a high-performance low-cost optical receiver. SOR series have independent RF return channel and plug play reverse optical transmitter component, with excellent CNR,CSO, CTB index, as well as efficient photoelectric conversion box matching functions to ensure high quality signal transmission, can for network upgrades at any time.



Product Features:

  • High responsivity PIN photoelectric swith tube .
  • Precision detection circuit can real-time display the output power through LED lamp or digital tube accurately.
  • Optimize the circuit design,SMT+module amplifier classic circuit photoelectricity signal transmission is more fluency.
  • Power double output, high gain, low distortion compact structure, convenient installation, is the first choice equipment of FTTB CATV network;
  • Excellent optical AGC control technique, when the input optical power range is -8~+2dBm, the output level, CTB and CSO basically unchanged.



Details:



Parameter Specification
Product Name HFC Equipment 2 Ports Outdoor Optical Node With Return Path
Input Range Power -8 ~ +2dBm

Forward Path Bandwidth

45 ~ 862Mhz

Return Path Bandwidth

5-30&42&65

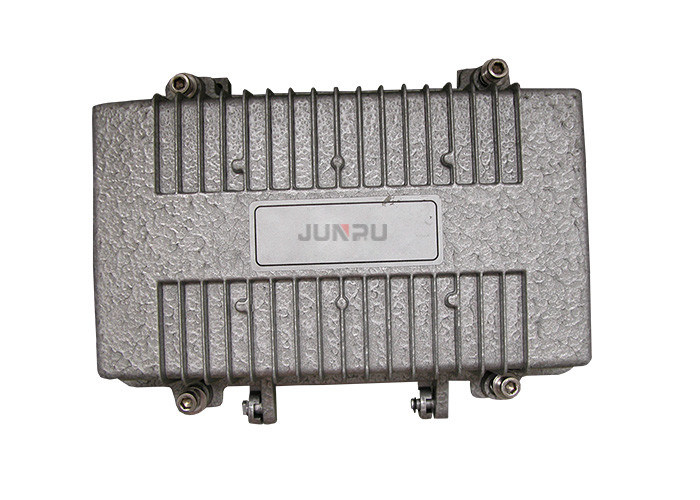

FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path 0

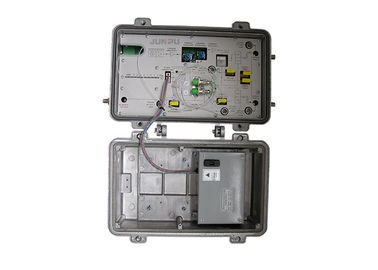

FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path 1



Technical Specification:


Item Unit Technical Parameters
Forward Path Parameters
Optical Parameters
Receiving Optical Power dBm -8 ~ +2
Optical Return Loss dB >45
Optical Receiving Wavelength nm 1100 ~ 1600
Optical Connector Type   SC/APC or specified by the user
Fiber Type   Single mode
Link Parameters
C/N dB ≥ 51
C/CTB dB ≥ 65

-2dBm input, output power 106BμV

ATT 0dB

C/CSO dB ≥ 60
RF Parameters
Frequency Range MHz 45 ~862
Flatness in Band dB ±0.75
Rated Output Level dBμV ≥ 108(-8~2dBm)
Max Output Level dBμV ≥ 110
Output Return Loss dB ≥14
Output Impedance Ω 75
Return Path Parameters
Wavelength nm 1100-1600
Bandwidth MHz 5-30&42&65(max:200)
Output power mW 1&2
flatness dB ±0.75
General Characteristics
Power Voltage V A:AC(150~265)V;B:AC(35~90)V
Operating Temperature -40~60
Consumption VA ≤ 30
FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path 2

Workshop:
FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path 3

FHC Optical Node 2 Ports Outdoor Fiber Optic Receiver With Return Path 4
