Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP2GOR
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 5000 Pieces Per Month
Product Name: |
Optical Node Catv Outdoor 860 |
Application: |
HFC |
Wavelength: |
1100 - 1600nm |
Input Power: |
-8dBm ~ +2dBm |
Bandwidth: |
40~862MHz&1006MHz |
With Return Path: |
Customized |
Power Supply: |
AC35-AC90V&AC140V~265V |
RF Output Level: |
102,104,106dbuv |
OEM: |
YES |
MOQ: |
1 |
Product Name: |
Optical Node Catv Outdoor 860 |
Application: |
HFC |
Wavelength: |
1100 - 1600nm |
Input Power: |
-8dBm ~ +2dBm |
Bandwidth: |
40~862MHz&1006MHz |
With Return Path: |
Customized |
Power Supply: |
AC35-AC90V&AC140V~265V |
RF Output Level: |
102,104,106dbuv |
OEM: |
YES |
MOQ: |
1 |

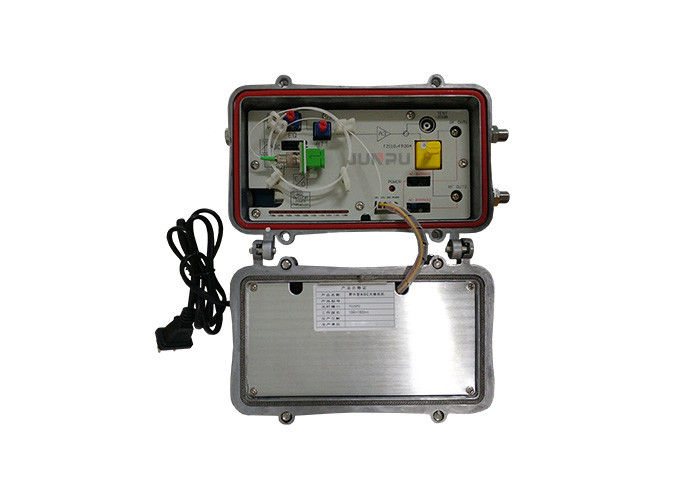

Junpu 2 Outputs Optical Node Catv Outdoor 860 With AGC Control 104dbuv
Product Features:
Description:
Details:
| Parameter | Specification |
| Product Name | 2 Outputs Optical Node Catv Outdoor 860 With AGC |
| Input Range Power | -8 ~ +2dBm |
|
Bandwidth |
45 ~ 862Mhz&1006MHz |
|
RF output level |
102,104,106dbuv |
Technical Specification:
| Index | JP-2GOR |
| Wavelength | 1100-1600nm |
| Optical input power | -8dBm~+2dBm |
| AGC control range | -8dBm~+2dBm |
| Optical return loss | >45dB |
| Optical connector | FC/APC&SC/APC |
| Bandwidth | 40~750&862&1006MHz |
| Flatness | ±0.75dB@40-750MHz ±1dB@40-860&1000MHz |
| Output return loss | ≥16dB@40-550MHz ≥14dB @550-750&860&1000MHz |
| Gain adjustable range | 0-20dB |
| Slope adjustable range | 0-18dB |
| Impedance | 75Ω |
| CN(note 3) | ≥51dB |
| CTB(note 3) | ≥65dB |
| CSO(note 3) | ≥62dB |
| Power supply | AC35-AC90V&AC140V~265V or customize |
| Power supply way |
220V@Chinese Outlet with 1m power cord 60V@G283 independent power supply port |
| Mainboard voltage | +24V&+8V |
| Working temperature | -25℃~+55℃ or customize |
| Consumption | ≤10w |
| Size | 210x165x90mm(220V) & 225x160x90mm(60V) |
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
