Name: Economical External Modulated Catv Fiber Optic Transmitter 1550nm 9dbm 1 Ports
Brand: JUNPU
SKU: JP1519ET
Rating: 4.8 (164 reviews)

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1519ET

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 3000Pieces Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                catv fiber optic transmitter, 1550 optical transmitter


Product Name:	Catv Fiber Optical 1550nm Optical Transmitter	Wavelength:	1550nm
Output Optical Power:	1x7,1x9, 2x5, 2x6, 2x7, 2x8, 2x9, 2x10, 2x11	Laser Type:	JDSU, Ocrola, Ortel, AOI
Optical Connector:	SC APC Or FC APC	Bandwidth:	47 ~ 862Mhz&1000Mhz
Working Voltage:	AC220V Or DC48V	Power Source:	1+1 Backup Power Source
Warranty:	2 Years	OEM:	YES

Product Name:	Catv Fiber Optical 1550nm Optical Transmitter
Wavelength:	1550nm
Output Optical Power:	1x7,1x9, 2x5, 2x6, 2x7, 2x8, 2x9, 2x10, 2x11
Laser Type:	JDSU, Ocrola, Ortel, AOI
Optical Connector:	SC APC Or FC APC
Bandwidth:	47 ~ 862Mhz&1000Mhz
Working Voltage:	AC220V Or DC48V
Power Source:	1+1 Backup Power Source
Warranty:	2 Years
OEM:	YES

Economical External Modulated Catv Fiber Optic Transmitter 1550nm 9dbm 1 Ports

Junpu 1 Ports External Modulated Catv Fiber Optical 1550nm Optical Transmitter 9dbm

Product Features:

Both the external modulator and laser are imported from the United States or Japan.
Perfect pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard.
Perfect SBS suppress circuit and adjustable SBS in 13~19,suitable for different types of CATV net.
AGC control.
Internal double power which can be changed automatically.
Automatically shell temperature control.
Internal microprocessor software has the function of laser monitoring, parameter display, fault warning, net management and so on. Once the working parameter of the laser goes out of the fixed value of the software, the machine will warn.
The transmitter provides RJ45 and RS232 standard interface for the connecting the computer and monitoring.

Description:

JP1519ET an economical 1550nm Externally Modulated Optical Transmitter, is produced specially for middle and small CATV station. Optical transmitter adopts narrow bandwidth (Typ.=1MHz), low noise and continuous wave DFB laser as the light source, adopts CATV special LiNbO3 external modulator to modulate signal, and adopts a series of unique innovation technique to reach the excellent system control. With 47~862MHz bandwidth, CNR ≥ 53dB, CTB ≤ -65dB, CSO ≤ -65dB, SBS: 13dbmadjustable, Optical transmitter can make CATV network transmit video, audio and data with high performance. The machine is equipped with perfect RS232 communication interface, SNMP network management and 1+1 backup power supply.

1550nm externally modulated optical transmitter is the core equipment in this system. RFTV is a unidirectional analogue and digital video broadcast. It adopts high efficiency modulation mode for RF carrier wave and its economy, flexibility and bandwidth validity is beyond comparison of IPTV. Adopting EPON or P2P access mode to realize triple-play, FTTx , RFTV broadcasting network in 1550nm optical transmitter wavelength still plays an important role.

1550nm directed modulation optical transmitter max support 20km transmission distance.
If more than 20km, then it should be 1550nm extener modulated optical transmitter.

FTTH Diagram:

Details:

Parameter	Specification
Product Name	Catv Fiber Optical 1550nm Optical Transmitter
Working Wavelength	1550±10
SBS adjustable	13 ~ 19dbm or 13,16,18,19dbm adjustable
Output Optical Power	1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11

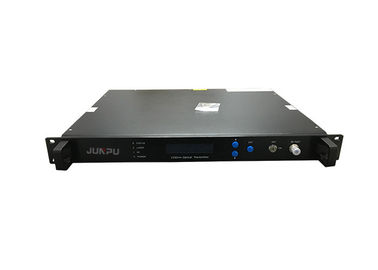

Economical External Modulated Catv Fiber Optic Transmitter 1550nm 9dbm 1 Ports 1

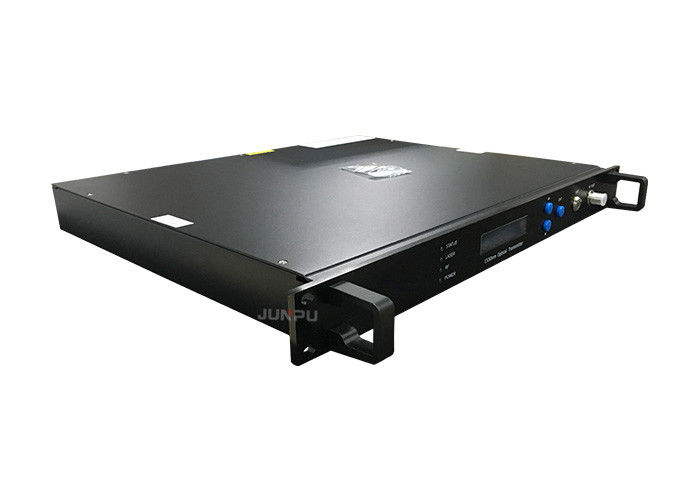

Economical External Modulated Catv Fiber Optic Transmitter 1550nm 9dbm 1 Ports 2

Economical External Modulated Catv Fiber Optic Transmitter 1550nm 9dbm 1 Ports 3

Technical Specification:

Parameter		Index	Remarks
Optical Parameters	Wavelength (nm)	1550±10	1x5,1x9, 1x10,2x5,2x7,2x8,2x9,2x10,2x11
	Output power (dBm)	1×3 ~ 2×10
	Optical return loss (dB)	≥60
	Connector type	SC/APC	Or FC/APC
RF parameters	bandwidth (MHz)	47~862/1000
	Input level (dBmV)	23±5	AGC
	Flatness (dB)	≤±0.75	45~862MHz
	Return loss (dB)	≥16	45~750MHz
	Input inpedance (Ω)	75
Link Parameters	channels	PAL-D/60ch
	CNR (dB)	≥53	65Km fiber,Receive0dBm
	CTB (dB)	≥65
	CSO (dB)	≥65
	SBS (dBm)	13~19	Step 0.1
General Parameters	Net interface	RJ45,R232
	Power (V)	90~265	Or -48VDC
	Power loss (W)	≤50
	Working Temp(℃)	0~50	Automatically shell temp control
	Storage Temp(℃)	-20~85
	Working relative Temp	20%~85%
