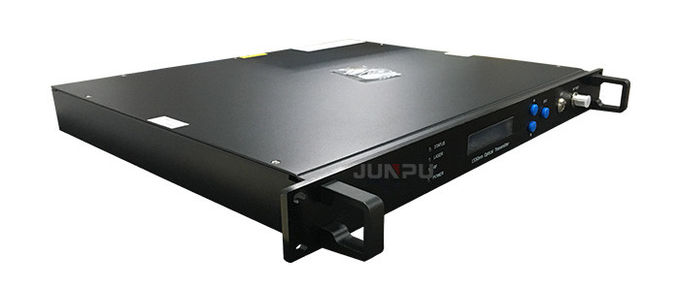

Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1510DT

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 3000Pieces Per Month

Get Best Price
Highlight:
Product Name:
Catv Fiber Optic Transmitter
Wavelength:
1550nm
Output Optical Power:
3,5,6,7,8,9,10dbm
Laser Type:
DFB
Optical Connector:
SC APC Or FC APC
Bandwidth:
47 ~ 862Mhz&1000Mhz
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
Product Name:
Catv Fiber Optic Transmitter
Wavelength:
1550nm
Output Optical Power:
3,5,6,7,8,9,10dbm
Laser Type:
DFB
Optical Connector:
SC APC Or FC APC
Bandwidth:
47 ~ 862Mhz&1000Mhz
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES

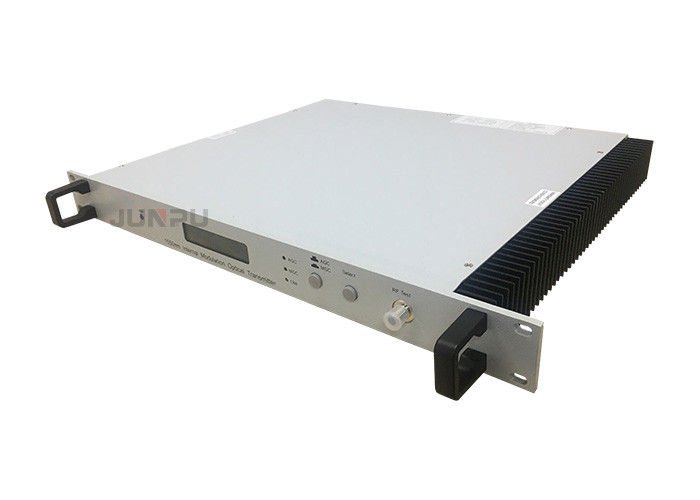

Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U

 Catv Directed Fiber Optic Transmitter Module 1550nm With Back-Up Power 1U



Description:

  • Direct modulation will lead to high laser chirp (Laser's bias current is modulated by signal and the optical spectrum shifts and shakes). The laser chip will interact with the dispersion effect caused by standard single-mode fiber (SMF-28), which will generate serious distortion in the place of 1550nm. This kind of distortion will become more serious with the increase in transmission distance, bandwidth, and channel number.



  • Junpu JP1510DT is a 1550nm direct modulation optical transmitter with a high index and AGC function. It adopts high linearity and low chirp DFB laser, built-in pre-distortion compensation, and AGC, APC, and ATC closed loop control, which improves the system index obviously. JP1510DT direct modulated optical transmitter can be used in WDM narrow-band multiplexing and IP/QAM.



  • 1550nm directed modulation optical transmitter max support 20km transmission distance.
  • If more than 20km, then it should be a 1550nm extender modulated optical transmitter.



FTTH Diagram:

Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 0



Product Features:

  • Low chirp, high linearity DFB laser, chirp compensation
  • Full-automatic OMI control, AGC & MGC
  • Intuitionistic modulation status display
  • Built-in dual back-up power supply, switch automatically
  • Casing temperature auto-control, ensure the long life of the laser



Details:



Parameter Specification
Product Name  10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back-Up Power 1U
Working Wavelength 1550±10
Connector Type

SC APC

Output Optical Power 1 or 2 outputs, 3,5,6,8,9,10dbm

Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 1



Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 2



Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 3



Technical Specification:



Optical
Working Wavelength(nm) 1290~1600
Input range(dBm) -13~0
Optical Return Loss(dB) ≥45
Fiber Connector SC/APC
RF
Frequency(MHz) 47~862
Unflatness(dB) ±1.5
Output Level(dBuV) 66~86@0dBm
Manual Gain Range(dB) 0~20±1
Output Return Loss(dB) ≥16
Output Impedance(Ω) 75
No. of output port 2
RF connector F-5(Imperial)
Link
CTB(dB) ≥62@0dBm
CSO(dB) ≥63@0dBm
CNR(dB) ≥50@0dBm

SAT-IF
Frequency(MHz) 950~2600
Output(dBm) -50~-30
Unflatness(dB) ±1.5dB
IMD -40dBc
Output Impedance(Ω) 75
General
Power supply(V) 12 DC
Power Consumption(W) ≤4
Working Temp(℃) 0 ~ 50
Storage Temp -20~85℃
Humidity 20 ~ 85%




Test:

Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 4



Other Related Products:

Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 5Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 6Catv Directed Fiber Optic Transmitter Module 1550nm With Back - Up Power 1U 7



We sincerely invite you to send us an inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You!
