1550 Fiber Optic Catv Transmitter 1 Port Of 7dbm In External 50km Distancee

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1517ET

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 3000Pieces Per Month

Get Best Price
Highlight:

catv fiber optic transmitter

,

1550 optical transmitter

Product Name:
1550 Optical Transmitter Catv
Wavelength:
1550nm
Output Optical Power:
1x7,1x9, 2x5, 2x6, 2x7, 2x8, 2x9, 2x10, 2x11
Laser Type:
JDSU, Ocrola, Ortel, AOI
Optical Connector:
SC APC Or FC APC
Bandwidth:
47 ~ 862Mhz&1000Mhz
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
Product Name:
1550 Optical Transmitter Catv
Wavelength:
1550nm
Output Optical Power:
1x7,1x9, 2x5, 2x6, 2x7, 2x8, 2x9, 2x10, 2x11
Laser Type:
JDSU, Ocrola, Ortel, AOI
Optical Connector:
SC APC Or FC APC
Bandwidth:
47 ~ 862Mhz&1000Mhz
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
1550 Fiber Optic Catv Transmitter 1 Port Of 7dbm In External 50km Distancee

Junpu 1550 Optical Transmitter Catv 1 Port Of 7dbm In External 50km Distancee



Description:

  • JP1517ET an economical 1550nm Externally Modulated Optical Transmitter, is produced specially for middle and small CATV station. Optical transmitter adopts narrow bandwidth (Typ.=1MHz), low noise and continuous wave DFB laser as the light source, adopts CATV special LiNbO3 external modulator to modulate signal, and adopts a series of unique innovation technique to reach the excellent system control. With 47~862MHz bandwidth, CNR ≥ 53dB, CTB ≤ -65dB, CSO ≤ -65dB, SBS: 13dbmadjustable, Optical transmitter can make CATV network transmit video, audio and data with high performance. The machine is equipped with perfect RS232 communication interface, SNMP network management and 1+1 backup power supply.



  • 1550nm externally modulated optical transmitter is the core equipment in this system. RFTV is a unidirectional analogue and digital video broadcast. It adopts high efficiency modulation mode for RF carrier wave and its economy, flexibility and bandwidth validity is beyond comparison of IPTV. Adopting EPON or P2P access mode to realize triple-play, FTTx , RFTV broadcasting network in 1550nm optical  transmitter wavelength still plays an important role.



  • 1550nm directed modulation optical transmitter max support 20km transmission distance.
  • If more than 20km, then it should be 1550nm extener modulated optical transmitter.



FTTH Diagram:

1550 Fiber Optic Catv Transmitter 1 Port Of 7dbm In External 50km Distancee 0



Product Features:

  • Both the external modulator and laser are imported from the United States or Japan.
  • Perfect pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard.
  • Perfect SBS suppress circuit and adjustable SBS in 13~19,suitable for different types of CATV net.
  • AGC control.
  • Internal double power which can be changed automatically.
  • Automatically shell temperature control.
  • Internal microprocessor software has the function of laser monitoring, parameter display, fault warning, net management and so on. Once the working parameter of the laser goes out of the fixed value of the software, the machine will warn.
  • The transmitter provides RJ45 and RS232 standard interface for the connecting the computer and monitoring.

Details:



Parameter Specification
Product Name 1550 Optical Transmitter Catv
Working Wavelength 1550±10
SBS adjustable

13 ~ 19dbm or 13,16,18,19dbm adjustable

Output Optical Power 1x5,1x7,1x9,1x10,2x5,2x7,2x8,2x9,2x10,2x11

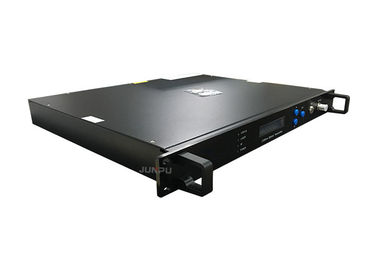

1550 Fiber Optic Catv Transmitter 1 Port Of 7dbm In External 50km Distancee 1

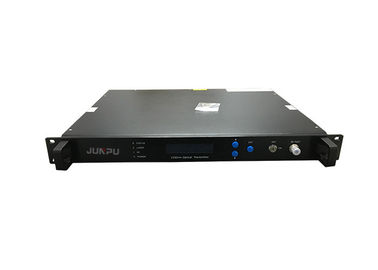

1550 Fiber Optic Catv Transmitter 1 Port Of 7dbm In External 50km Distancee 2

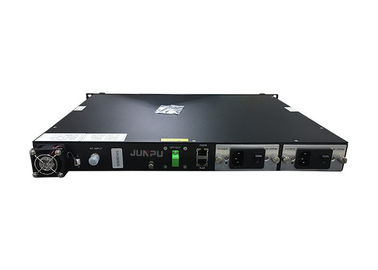

1550 Fiber Optic Catv Transmitter 1 Port Of 7dbm In External 50km Distancee 3

Technical Specification:



Parameter Index Remarks
Optical Parameters Wavelength (nm) 1550±10 1x5,1x9, 1x10,2x5,2x7,2x8,2x9,2x10,2x11
  Output power (dBm) 1×3 ~ 2×10
  Optical return loss (dB) ≥60
  Connector type SC/APC Or FC/APC
RF parameters bandwidth (MHz) 47~862/1000
  Input level (dBmV) 23±5 AGC
  Flatness (dB) ≤±0.75 45~862MHz
  Return loss (dB) ≥16 45~750MHz
  Input inpedance (Ω) 75
Link Parameters channels PAL-D/60ch
  CNR (dB) ≥53 65Km fiber,Receive0dBm
  CTB (dB) ≥65
  CSO (dB) ≥65
  SBS (dBm) 13~19 Step 0.1
General Parameters Net interface RJ45,R232
  Power (V) 90~265 Or -48VDC
  Power loss (W) ≤50
  Working Temp(℃) 0~50 Automatically shell temp control
  Storage Temp(℃) -20~85
  Working relative Temp 20%~85%
