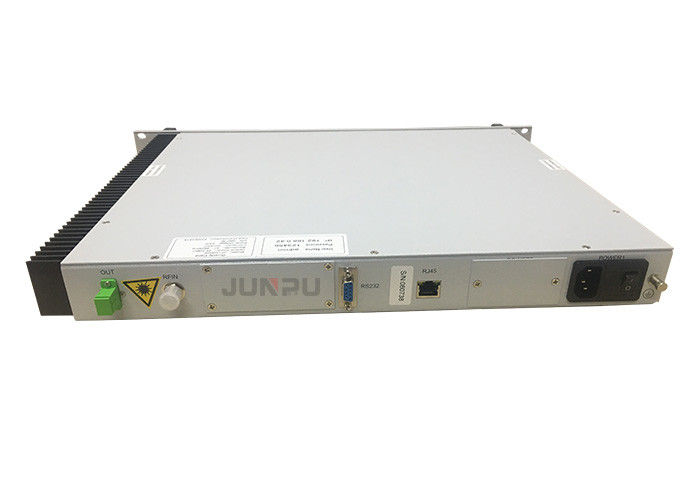

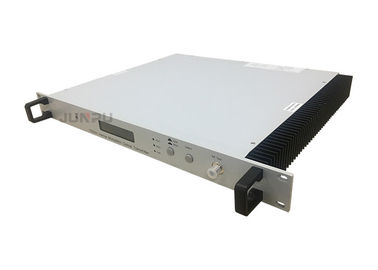

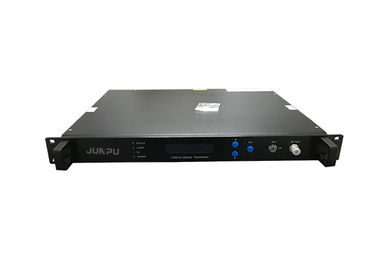

Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC

Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC
Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC

Large Image :  Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP1510DT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 3000Pieces Per Month
Detailed Product Description
Product Name: 1550nm Internal Optical Transmitter Wavelength: 1550nm
Output Optical Power: 3,5,6,7,8,9,10dbm Laser Type: DFB
Optical Connector: SC APC Or FC APC Bandwidth: 47 ~ 862Mhz&1000Mhz
Working Voltage: AC220V Or DC48V Power Source: 1+1 Backup Power Source
Warranty: 2 Years OEM: YES
High Light:

catv fiber optic transmitter

,

1550 optical transmitter

Junpu 20km 1550nm Internal Optical Transmitter 10dbm 1 Output SC APC



Description:

  • Direct modulation will lead to high laser chirp (Laser's bias current is modulated by signal and the optical spectrum shifts and shakes). Laser chip will interact with dispersion effect caused by standard single mode fiber (SMF-28), which will generate serious distortion in the place of 1550nm. This kind of distortion will become more serious with the increase of transmission distance, bandwidth and channel number.



  • Junpu JP1510DT is a 1550nm direct modulation optical transmitter with high index and AGC function. It adopts high linearity and low chirp DFB laser, built-in pre-distortion compensation and AGC, APC, ATC closed loop control, which improves the system index obviously. JP1510DT direct modulated optical transmitter can be used in WDM narrow-band multiplexing and IP/QAM.



  • 1550nm directed modulation optical transmitter max support 20km transmission distance.
  • If more than 20km, then it should be 1550nm extener modulated optical transmitter.



FTTH Diagram:

Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 0



Product Features:

  • Low chirp, high linearity DFB laser, chirp compensation
  • Full-automatic OMI control, AGC & MGC
  • Intuitionistic modulation status display
  • Built-in dual back-up power supply, switch automatically
  • Casing temperature auto-control, ensure the long life of the laser



Details:



Parameter Specification
Product Name 1550nm Internal Optical Transmitter
Working Wavelength 1550±10
Connector Type

SC APC

Output Optical Power 1 or 2 outputs, 3,5,6,8,9,10dbm



Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 1



Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 2



Technical Specification:



Performance Index Supplement
Optic feature Wavelength (nm) 1548~1565 JP1510DT
  Output power (dBm) 10 Optional 3, 8, 10
  Return loss (dB) ≥55
  optical fiber connector   FC/APC Optional SC/APC
RF feature Work bandwidth (MHz) 45-862/1000Mhz
  Input level (dBmV) 20±2 MGC
  Flatness (dB) ≤±0.75 45~862MHz
  Return loss (dB) >16
  Input impedance (Ω) 75 RF/INPUT
  RF test (dB) 0±1
Link feature Transmit channel   PAL-D/60CH NTSC/80CH
  CNR (dB) ≥50 -1dBm receive
  CTB (dB) ≤-63
  CSO (dB) ≤-57

General

feature

Network management interface   RJ45, RS232 Support I.E. & SNMP
  Power supply (V) 90~265 city power -48VDC optional




Workshop:

Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 3



Other Related Products:

Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 4Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 5Junpu 20km Internal 1550nm Optical Transmitter 10dbm 1 Output SC APC 6



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
