Name: 10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back - Up Power 1U
Brand: JUNPU
SKU: JP1510DT
Rating: 4.5 (134 reviews)

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1510DT

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 3000Pieces Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                catv fiber optic transmitter, 1550 optical transmitter


Product Name:	Catv Fiber Optic Transmitter	Wavelength:	1550nm
Output Optical Power:	3,5,6,7,8,9,10dbm	Laser Type:	DFB
Optical Connector:	SC APC Or FC APC	Bandwidth:	47 ~ 862Mhz&1000Mhz
Working Voltage:	AC220V Or DC48V	Power Source:	1+1 Backup Power Source
Warranty:	2 Years	OEM:	YES

Product Name:	Catv Fiber Optic Transmitter
Wavelength:	1550nm
Output Optical Power:	3,5,6,7,8,9,10dbm
Laser Type:	DFB
Optical Connector:	SC APC Or FC APC
Bandwidth:	47 ~ 862Mhz&1000Mhz
Working Voltage:	AC220V Or DC48V
Power Source:	1+1 Backup Power Source
Warranty:	2 Years
OEM:	YES

10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back - Up Power 1U

10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back-Up Power 1U

Description:

Direct modulation will lead to high laser chirp (Laser's bias current is modulated by signal and the optical spectrum shifts and shakes). Laser chip will interact with dispersion effect caused by standard single mode fiber (SMF-28), which will generate serious distortion in the place of 1550nm. This kind of distortion will become more serious with the increase of transmission distance, bandwidth and channel number.

Junpu JP1510DT is a 1550nm direct modulation optical transmitter with high index and AGC function. It adopts high linearity and low chirp DFB laser, built-in pre-distortion compensation and AGC, APC, ATC closed loop control, which improves the system index obviously. JP1510DT direct modulated optical transmitter can be used in WDM narrow-band multiplexing and IP/QAM.

1550nm directed modulation optical transmitter max support 20km transmission distance.
If more than 20km, then it should be 1550nm extener modulated optical transmitter.

FTTH Diagram:

Product Features:

Low chirp, high linearity DFB laser, chirp compensation
Full-automatic OMI control, AGC & MGC
Intuitionistic modulation status display
Built-in dual back-up power supply, switch automatically
Casing temperature auto-control, ensure the long life of the laser

Details:

Parameter	Specification
Product Name	10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back-Up Power 1U
Working Wavelength	1550±10
Connector Type	SC APC
Output Optical Power	1 or 2 outputs, 3,5,6,8,9,10dbm

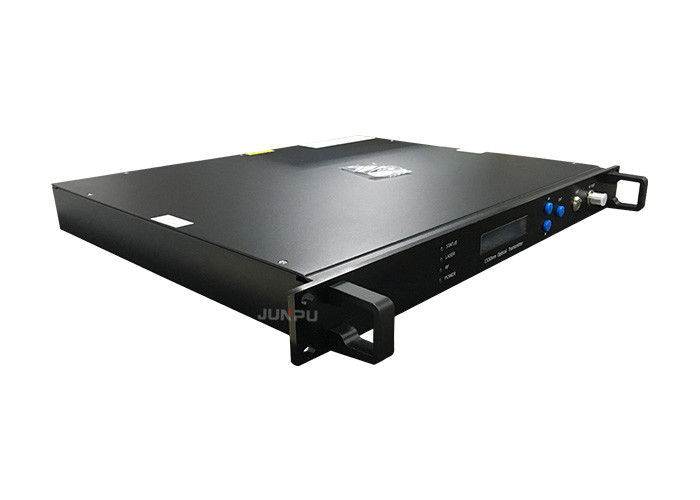

10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back - Up Power 1U 1

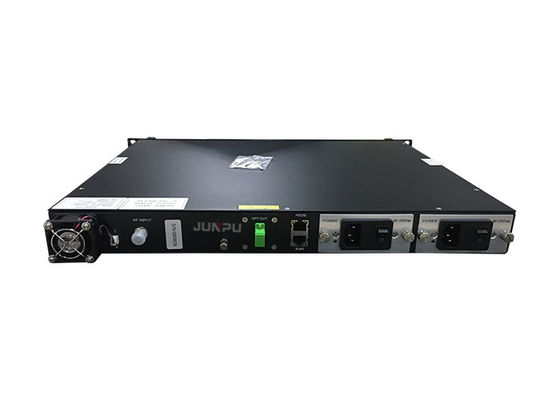

10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back - Up Power 1U 2

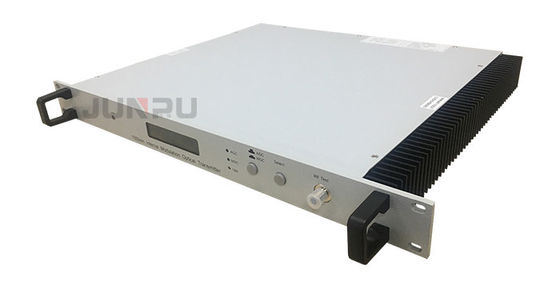

10dbm Catv Directed Fiber Optic Transmitter Module 1550 With Back - Up Power 1U 3

Technical Specification:

Optical
Working Wavelength(nm)	1290~1600
Input range(dBm)	-13~0
Optical Return Loss(dB)	≥45
Fiber Connector	SC/APC
RF
Frequency(MHz)		47～862
Unflatness(dB)		±1.5
Output Level(dBuV)		66~86@0dBm
Manual Gain Range(dB)		0～20±1
Output Return Loss(dB)		≥16
Output Impedance(Ω)		75
No. of output port		2
RF connector		F-5(Imperial)
Link
CTB(dB)		≥62@0dBm
CSO(dB)		≥63@0dBm
CNR(dB)		≥50@0dBm

SAT-IF
Frequency(MHz)		950~2600
Output(dBm)		-50~-30
Unflatness(dB)		±1.5dB
IMD		-40dBc
Output Impedance(Ω)		75
General
Power supply(V)		12 DC
Power Consumption(W)		≤4
Working Temp(℃)		0 ～ 50
Storage Temp		-20～85℃
Humidity		20 ～ 85%
