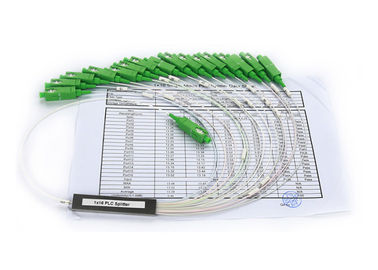

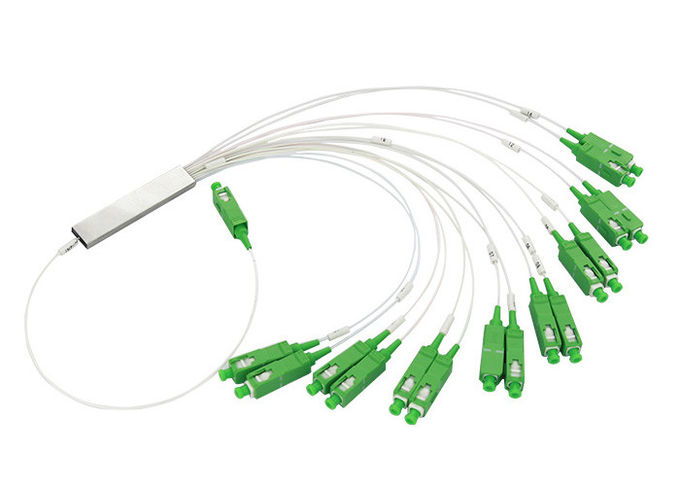

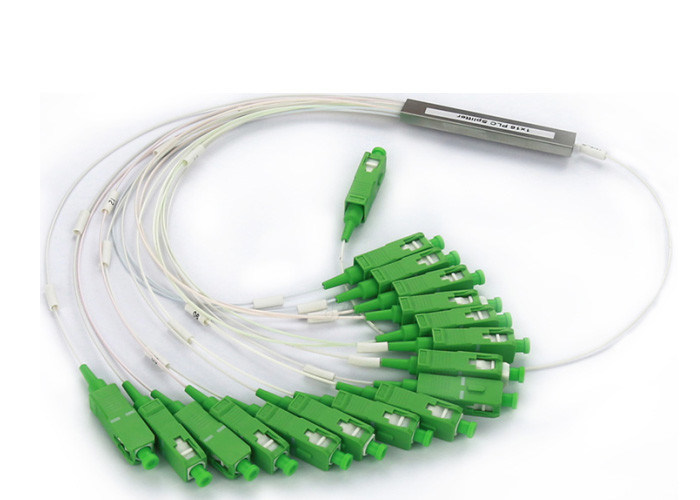

16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure

16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure
16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure

Large Image :  16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: 16 Way Fiber Optic Plc Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Detailed Product Description
Connector Type: SC,FC,LC,ST Ferrule End-face: PC, UPC,APC
Fiber Type: G652D G657A1 G657A2 Fiber Mode: Singlmode
Package: Steel Tube, ABS Structure: 1X8
Product Name: 16 Way Fiber Optic Plc Splitter Optical Splitter Core: Corning Core
PLC Splitter In Tension: >=100N
High Light:

fiber optic plc splitter

,

fiber optic cable splitter

Junpu 16 Way Fiber Optic Plc Splitter SC APC Mini Steel Tube Structure



Description:

  • Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
  • It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Feature:

  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃

Other Specification:

  • 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
  • 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
  • Type: Bare-fiber type,micro type,ABS box type,Cassette type
  • Adapter type of splitter: SC/UPC, SC/APC



Application:



  • FTTX Systems
  • PON Networks
  • CATV Links
Product Name 16 Way Fiber Optic Plc Splitter SC APC Mini Steel Tube Structure
Operating wavelength 1260 ~ 1650nm
Connector Type SC APC, SC, LC, FC, ST



Specification:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent loss 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

 16 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 016 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 116 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 216 Way PLC Fiber Optic Splitter Singl Mode SC APC Mini Steel Tube Structure 3



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
