Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: splitter apc 1x8
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Connector Type: |
SC,FC,LC,ST |
Ferrule End-face: |
PC, UPC,APC |
Fiber Type: |
G652D G657A1 G657A2 |
Fiber Mode: |
Singlmode |
Package: |
Steel Tube, ABS |
Structure: |
1X8 |
Product Name: |
Fiber Optic Splitter Apc 1x8 |
Connector Type: |
SC,FC,LC,ST |
Ferrule End-face: |
PC, UPC,APC |
Fiber Type: |
G652D G657A1 G657A2 |
Fiber Mode: |
Singlmode |
Package: |
Steel Tube, ABS |
Structure: |
1X8 |
Product Name: |
Fiber Optic Splitter Apc 1x8 |
Factory Price FTTH 1x8 Fiber Optical Splitter Cassette Outdoor Terminal Box
Description:
This is a professional fiber splitter, which can distribute the light energy of a single fiber to 8 fibers according to a given ratio, or combine the light energy of multiple fibers into a single fiber

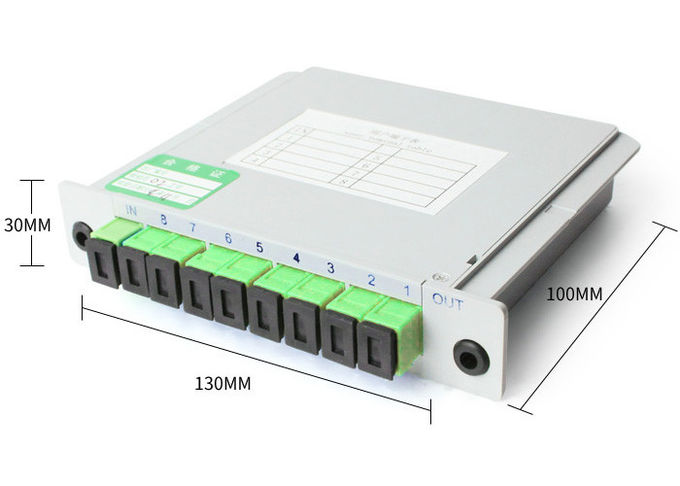

1x8 insert type PLC Splitter. The interface type is SC/APC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.
Full fiber optic structure, good environmental stability, compact structure, small size, can be installed in various existing transfer boxes, No need to leave a lot of installation space
Before aligning the coupler, the waveguide must be cleaned and carefully installed on the waveguide frame, then the fiber is cleaned, one end is installed on the precision adjustment frame at the incident end, and the other end is connected to the light source
Features
Applications:
Specification:
Table 1 – 1×N PLC Fiber Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Fiber Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Notes:
