10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP1510DT

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 3000Pieces Per Month

Get Best Price
Highlight:

catv fiber optic transmitter

,

1550 optical transmitter

Product Name:
Catv Laser Transmitter 1550
Wavelength:
1550nm
Output Optical Power:
3,5,6,7,8,9,10dbm
Laser Type:
DFB
Optical Connector:
SC APC Or FC APC
Bandwidth:
47 ~ 862Mhz&1000Mhz
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
Product Name:
Catv Laser Transmitter 1550
Wavelength:
1550nm
Output Optical Power:
3,5,6,7,8,9,10dbm
Laser Type:
DFB
Optical Connector:
SC APC Or FC APC
Bandwidth:
47 ~ 862Mhz&1000Mhz
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation

Junpu Catv Laser 10dbm Optical Transmitter 1550 In Directed Modulation



Description:

  • Direct modulation will lead to high laser chirp (Laser's bias current is modulated by signal and the optical spectrum shifts and shakes). Laser chip will interact with dispersion effect caused by standard single mode fiber (SMF-28), which will generate serious distortion in the place of 1550nm. This kind of distortion will become more serious with the increase of transmission distance, bandwidth and channel number.



  • Junpu JP1510DT is a 1550nm direct modulation optical transmitter with high index and AGC function. It adopts high linearity and low chirp DFB laser, built-in pre-distortion compensation and AGC, APC, ATC closed loop control, which improves the system index obviously. JP1510DT direct modulated optical transmitter can be used in WDM narrow-band multiplexing and IP/QAM.



  • 1550nm directed modulation optical transmitter max support 20km transmission distance.
  • If more than 20km, then it should be 1550nm extener modulated optical transmitter.



FTTH Diagram:

10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation 0



Product Features:

  • Low chirp, high linearity DFB laser, chirp compensation
  • Full-automatic OMI control, AGC & MGC
  • Intuitionistic modulation status display
  • Built-in dual back-up power supply, switch automatically
  • Casing temperature auto-control, ensure the long life of the laser



Details:



Parameter Specification
Product Name  catv laser transmitter 1550
Working Wavelength 1550±10
Connector Type

SC APC

Output Optical Power 1 or 2 outputs, 3,5,6,8,9,10dbm

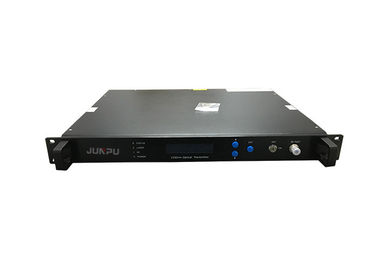

10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation 1

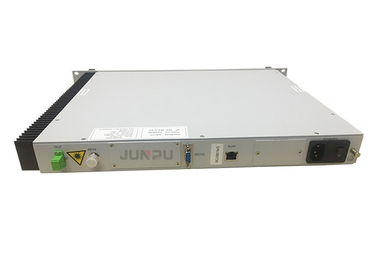

10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation 2

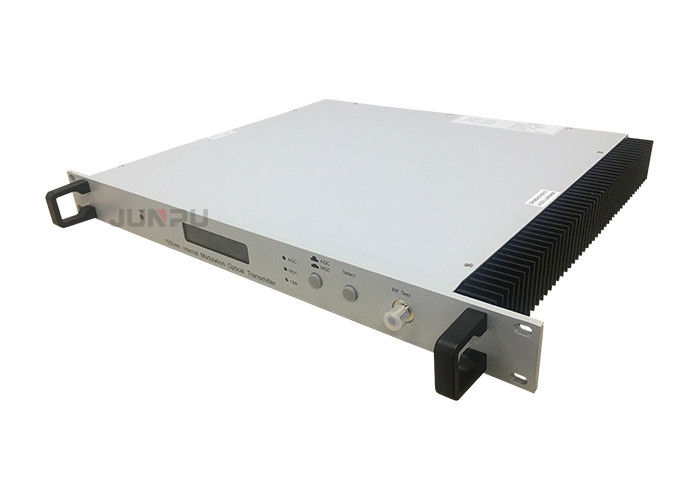

10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation 3



Technical Specification:



Optical
Working Wavelength(nm) 1290~1600
Input range(dBm) -13~0
Optical Return Loss(dB) ≥45
Fiber Connector SC/APC
RF
Frequency(MHz) 47~862
Unflatness(dB) ±1.5
Output Level(dBuV) 66~86@0dBm
Manual Gain Range(dB) 0~20±1
Output Return Loss(dB) ≥16
Output Impedance(Ω) 75
No. of output port 2
RF connector F-5(Imperial)
Link
CTB(dB) ≥62@0dBm
CSO(dB) ≥63@0dBm
CNR(dB) ≥50@0dBm

SAT-IF
Frequency(MHz) 950~2600
Output(dBm) -50~-30
Unflatness(dB) ±1.5dB
IMD -40dBc
Output Impedance(Ω) 75
General
Power supply(V) 12 DC
Power Consumption(W) ≤4
Working Temp(℃) 0 ~ 50
Storage Temp -20~85℃
Humidity 20 ~ 85%




Workshop:

10dbm 1550nm Optical Transmitter / Catv Laser Transmitter In Directed Modulation 4
