Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP26R
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit card Via Alibaba
Supply Ability: 3000 Pieces Per Month
Product Name: |
Optical Satellite 2600mhz Receiver |
Input Range: |
-13~ 0dBm |
Work Bandwidth: |
45 ~ 862Mhz @ 960 ~ 2600Mhz |
Output Level: |
66~86@0dBm |
Output Ports: |
1 Or 2 Rf Outputs |
Connector: |
SC APC; FC APC; SC |
Application: |
Satellite Network; FTTH |
Warranty: |
2 Years |
OEM: |
YES |
Product Name: |
Optical Satellite 2600mhz Receiver |
Input Range: |
-13~ 0dBm |
Work Bandwidth: |
45 ~ 862Mhz @ 960 ~ 2600Mhz |
Output Level: |
66~86@0dBm |
Output Ports: |
1 Or 2 Rf Outputs |
Connector: |
SC APC; FC APC; SC |
Application: |
Satellite Network; FTTH |
Warranty: |
2 Years |
OEM: |
YES |

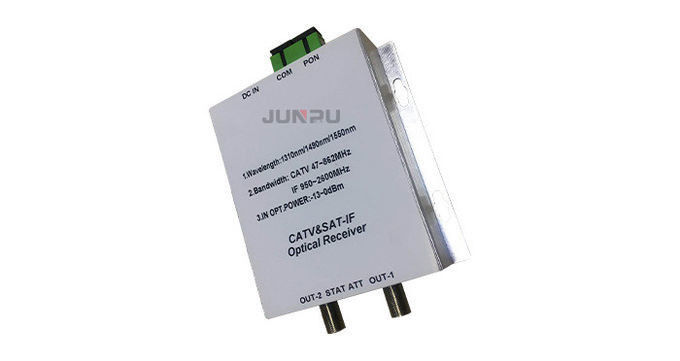

Junpu FTTH Optical Satellite 2600mhz Receiver With Inside Wdm Module
Product Feature:
Details:
| Parameter | Specification |
| Product Name | Optical Satellite 2600mhz Receiver |
| Input Range Power | -13~ 0dBm |
| Bandwidth |
45 ~ 862Mhz @ 960 ~ 2600Mhz |
| Output Ports | 1 or 2 rf outputs |
Technical Specification:
| Optical | ||
| Working Wavelength(nm) | 1290~1600 | |
| Input range(dBm) | -13~0 | |
| Optical Return Loss(dB) | ≥45 | |
| Fiber Connector | SC/APC | |
| RF | ||
| Frequency(MHz) | 47～862 | |
| Unflatness(dB) | ±1.5 | |
| Output Level(dBuV) | 66~86@0dBm | |
| Manual Gain Range(dB) | 0～20±1 | |
| Output Return Loss(dB) | ≥16 | |
| Output Impedance(Ω) | 75 | |
| No. of output port | 2 | |
| RF connector | F-5(Imperial) | |
| Link | ||
| CTB(dB) | ≥62@0dBm | |
| CSO(dB) | ≥63@0dBm | |
| CNR(dB) | ≥50@0dBm | |
| SAT-IF | ||
| Frequency(MHz) | 950~2600 | |
| Output(dBm) | -50~-30 | |
| Unflatness(dB) | ±1.5dB | |
| IMD | -40dBc | |
| Output Impedance(Ω) | 75 | |
| General | ||
| Power supply(V) | 12 DC | |
| Power Consumption(W) | ≤4 | |
| Working Temp(℃) | 0 ～ 50 | |
| Storage Temp | -20～85℃ | |
| Humidity | 20 ～ 85% | |
Workshop:
Other Related Products Series:
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
