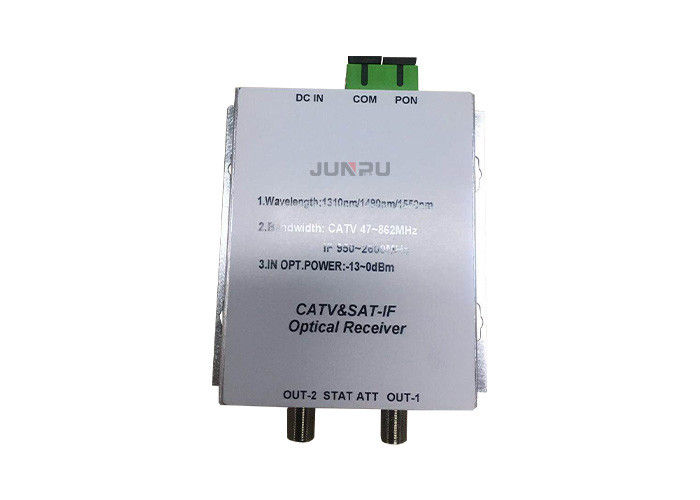

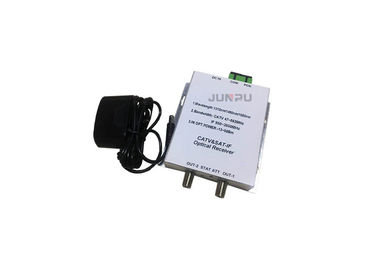

2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V

2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V
2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V

Large Image :  2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP26R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 working days based on quantity
Payment Terms: T/T, Western Union, Credit card Via Alibaba
Supply Ability: 3000 Pieces Per Month
Detailed Product Description
Product Name: SAT IF Satellite Optical 2600mhz Receiver Input Range: -13~ 0dBm
Work Bandwidth: 45 ~ 862Mhz @ 960 ~ 2600Mhz Output Level: 66~86@0dBm
Output Ports: 1 Or 2 Rf Outputs Connector: SC APC; FC APC; SC
Application: Satellite Network; FTTH Warranty: 2 Years
OEM: YES
High Light:

satellite transmitter and receiver

,

fiber optic transmitter

Junpu 2 Outputs SAT IF Satellite Optical 2600mhz Receiver With 12V



Product Feature:

  • With high sensitivity optical detector.
  • It is an embodiment of high-tech in CATV and L-band satellite fiber linking products
  • It can be received in an optical fiber with 47 ~2600MHz satellite and catv digital and analog signals.
  • Simple installation; It is convenient for user to install.
  • Input power from +0~-13dBm.
  • It has a good electromagnetic interference resistance ability.
  • High performance but low price



Details:



Parameter Specification
Product Name 2 Outputs SAT IF Satellite Optical 2600mhz Receiver
Input Range Power -13~ 0dBm
Bandwidth

45 ~ 862Mhz @ 960 ~ 2600Mhz

Output Ports 1 or 2 rf outputs



2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 0



2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 1





2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 2



2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 3



Technical Specification:

Optical
Working Wavelength(nm) 1290~1600
Input range(dBm) -13~0
Optical Return Loss(dB) ≥45
Fiber Connector SC/APC
RF
Frequency(MHz) 47~862
Unflatness(dB) ±1.5
Output Level(dBuV) 66~86@0dBm
Manual Gain Range(dB) 0~20±1
Output Return Loss(dB) ≥16
Output Impedance(Ω) 75
No. of output port 2
RF connector F-5(Imperial)
Link
CTB(dB) ≥62@0dBm
CSO(dB) ≥63@0dBm
CNR(dB) ≥50@0dBm

SAT-IF
Frequency(MHz) 950~2600
Output(dBm) -50~-30
Unflatness(dB) ±1.5dB
IMD -40dBc
Output Impedance(Ω) 75
General
Power supply(V) 12 DC
Power Consumption(W) ≤4
Working Temp(℃) 0 ~ 50
Storage Temp -20~85℃
Humidity 20 ~ 85%

     2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 4



Workshop:

2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 5



Other Related Products Series:



2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 6



2 Outputs SAT IF Optical Satellite Transmitter And Receiver 2600mhz With 12V 7



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
