Overlay Satellite Catv Fiber Optic Transmitter 45 ~ 2600Mhz CE CCC ROHS Approved

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP2610ST

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit card Via Alibaba

Supply Ability: 3000 Pieces Per Month

Get Best Price
Highlight:

satellite transmitter and receiver

,

satellite receiver transmitter

Product Name:
Overlay Catv Satellite Fiber Optical Transmitter
Output Power:
3 ~ 10mw
Work Bandwidth:
45 ~ 862Mhz @ 960 ~ 2600Mhz
Module Type:
Direct Modulation Or External Modulation
Output Ports:
1 Or 2 Ports
Connector:
SC APC; FC APC; SC
Application:
Satellite Network; FTTH
Warranty:
2 Years
Laser Logo:
Support
OEM:
YES
Product Name:
Overlay Catv Satellite Fiber Optical Transmitter
Output Power:
3 ~ 10mw
Work Bandwidth:
45 ~ 862Mhz @ 960 ~ 2600Mhz
Module Type:
Direct Modulation Or External Modulation
Output Ports:
1 Or 2 Ports
Connector:
SC APC; FC APC; SC
Application:
Satellite Network; FTTH
Warranty:
2 Years
Laser Logo:
Support
OEM:
YES

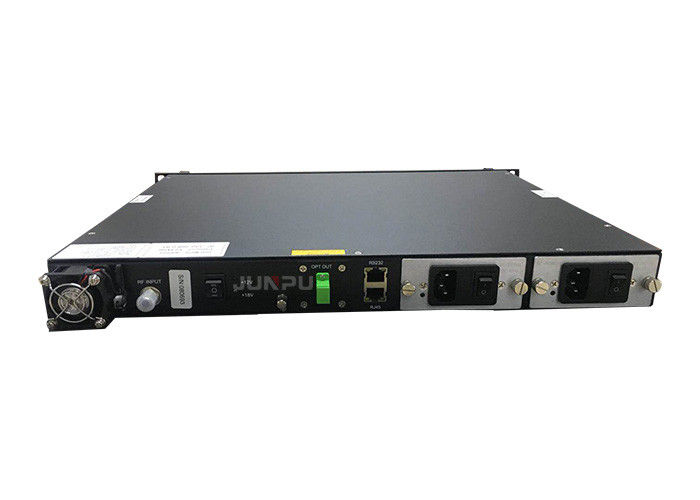

Overlay Satellite Catv Fiber Optic Transmitter 45 ~ 2600Mhz CE CCC ROHS Approved

Junpu Overlay Catv Satellite Fiber Optical Transmitter 45 ~ 2600Mhz



Description:

  • Optical Transmitter adopts high-linearity butterfly DFB laser which is directly modulated to transmit 47-862MHz and 960~2600MHz signal in a single fiber.



  • Optical Transmitter can choose ITU standard wavelength for DWDM system to extend and update the networks. It can be amplified by EDFA and EYDFA for huge FTTH system. It can be compatible with any FTTx PON technology to realize the combination of CATV,DVB-S , Internetm and FTTH.



  • Optical Transmitter adopts 19” standard rack, the parameters of the machine is controlled by micro-processor, and the status and fault alarm are displayed by the LCD in the front panel. Standard RJ 45 supports snmp management. The built-in laser APC, ATC control circuit assures the mlong life of the laser and reliable work.



Product Feature:

  • Adopt low noise imported DFB laser.
  • Superior pre-distortion circuit design, in achieving high standards of CNR value, there are still perfect CTB and CSO performance value.
  • Intelligent fan, it began to run when the chassis temperature reaches the set 32 ~ 35 ℃.
  • AGC control, so that different RF input level can still maintain a considerable output performance.
  • VFD or LED display, with laser monitoring, digital display, fault alarm, network management and other functions; once the laser operating parameters deviate from the software set the allowable range, will alert.
  • With standard RS232 interface for local network management and monitoring of computers.
  • With standard RJ45 interface support SNMP for remote monitoring.
  • High-quality switching power supply, can be 90V ~ 265V AC or -48V DC work.
  • Single input with frequency 47~2600MHz.
  • CATV and SAT-IF signal can be transmitted in a single fiber
  • It can be amplified by EDFA and EYDFA, compatible with any FTTX PON technology



Details:



Parameter Specification
Product Name Overlay Catv Satellite Fiber Optical Transmitter 45 ~ 2600Mhz
Working Wavelength 1540 ~1563nm
Bandwidth

45 ~ 862Mhz @ 960 ~ 2600Mhz

Output Optical Power 4 ~ 10mw







Overlay Satellite Catv Fiber Optic Transmitter 45 ~ 2600Mhz CE CCC ROHS Approved 0Overlay Satellite Catv Fiber Optic Transmitter 45 ~ 2600Mhz CE CCC ROHS Approved 1





Overlay Satellite Catv Fiber Optic Transmitter 45 ~ 2600Mhz CE CCC ROHS Approved 2



Technical Specification:



S/N Items Technical Paramters Unit Remarks
    Min Typical Max
Optical Parameters
5.1.1 Working Wavelength 1300 1310 1320 nm Choosed by customer
    1540 1550 1563 nm Choosed by customer
5.1.2 Output Power 8   30 mW 1310nm
    4   10 mW 1550nm
5.1.3 Optical Isolation 30     dB
5.1.4 Optical Return Loss 50     dB
5.1.5 Fiber Connector   FC/APC,SC/APC     Choosed by customer
CATV RF Parameters
5.2.1 Bandwidth 47   862 MHz
5.2.2 Input Range 75   85 dBuV
5.2.3 Flatness -0.75   +0.75 dB 47~862MHz
5.2.4 C/N 51     dB Test standard GT/T 184-2002
5.2.5 C/CTB 63     dB
5.2.6 C/CSO 58     dB
5.2.7 Input Return Loss 16     dB
5.2.8 RF Port   F Imperial
5.2.9 Input Impedance   75   Ω
SAT-IF Parameters
5.3.1 Working Bandwidth 5   2600 MHz
