Product Details:
Payment & Shipping Terms:
|
| Product Name: | Satellite Fiber Optic Sat IF Optical Receiver | Input Range: | -13~ 0dBm |
|---|---|---|---|
| Work Bandwidth: | 45 ~ 862Mhz @ 960 ~ 2600Mhz | Output Level: | 66~86@0dBm |
| Output Ports: | 1 Or 2 Rf Outputs | Connector: | SC APC; FC APC; SC |
| Application: | Satellite Network; FTTH | Warranty: | 2 Years |
| OEM: | YES | ||
| High Light: | satellite transmitter and receiver,fiber optic transmitter |
||

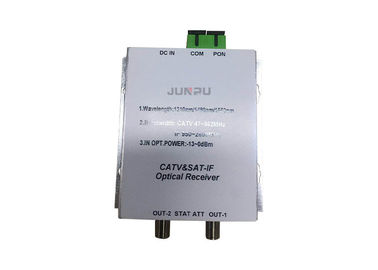

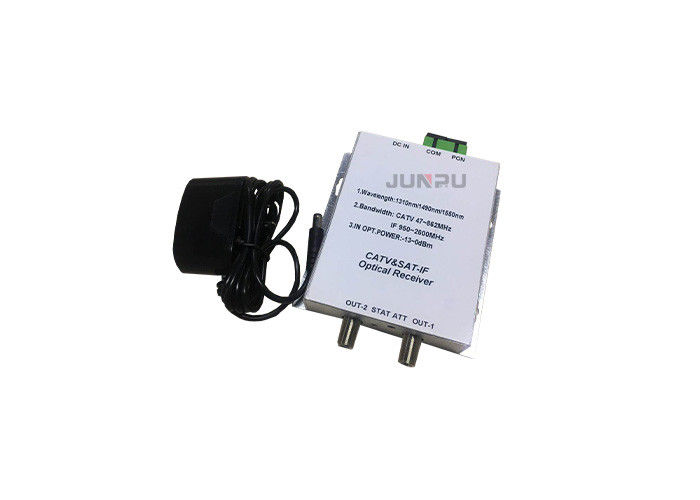

Junpu Wdm FTTH Satellite Fiber Optic Sat IF Optical Receiver 45 ~ 2600Mhz
Product Feature:
Details:
| Parameter | Specification |
| Product Name | Wdm FTTH Satellite Fiber Optic Sat IF Optical Receiver 45 ~ 2600Mhz |
| Input Range Power | -13~ 0dBm |
| Bandwidth |
45 ~ 862Mhz @ 960 ~ 2600Mhz |
| Output Ports | 1 or 2 rf outputs |
Technical Specification:
| Optical | ||
| Working Wavelength(nm) | 1290~1600 | |
| Input range(dBm) | -13~0 | |
| Optical Return Loss(dB) | ≥45 | |
| Fiber Connector | SC/APC | |
| RF | ||
| Frequency(MHz) | 47～862 | |
| Unflatness(dB) | ±1.5 | |
| Output Level(dBuV) | 66~86@0dBm | |
| Manual Gain Range(dB) | 0～20±1 | |
| Output Return Loss(dB) | ≥16 | |
| Output Impedance(Ω) | 75 | |
| No. of output port | 2 | |
| RF connector | F-5(Imperial) | |
| Link | ||
| CTB(dB) | ≥62@0dBm | |
| CSO(dB) | ≥63@0dBm | |
| CNR(dB) | ≥50@0dBm | |
| SAT-IF | ||
| Frequency(MHz) | 950~2600 | |
| Output(dBm) | -50~-30 | |
| Unflatness(dB) | ±1.5dB | |
| IMD | -40dBc | |
| Output Impedance(Ω) | 75 | |
| General | ||
| Power supply(V) | 12 DC | |
| Power Consumption(W) | ≤4 | |
| Working Temp(℃) | 0 ～ 50 | |
| Storage Temp | -20～85℃ | |
| Humidity | 20 ～ 85% | |
