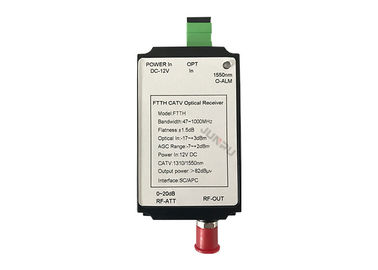

Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC

Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC
Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC

Large Image :  Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JPX86RF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000Pieces Per Month
Detailed Product Description
Product Name: 1550nm FTTH Optical Node Receiver Application: FTTH FTTB FTTX Network
Receiving Power: -1 ~ -20dbm(digital) Output Ports: 1 Output
Fiber Connector: SC, SC APC, LC, FC Output Level: 82dbuv
With Wdm: YES Working Wavelength: 1550nm
Power Supply: DC12V OEM: YES
High Light:

ftth catv optical receiver

,

ftth catv receiver

Junpu Micro 1550nm Filter FTTH Optical Node Receiver 12V 82dbuv SC APC



Description:

  • JPX86RF adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RF has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RF FTTH optical terminal can add isolator for only receiving the 1550nm optical.



FTTH Diagram:

Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 0



Details:



Parameter Specification
Product Name Micro 1550nm Filter FTTH Optical Node Receiver 12V 82dbuv
Working Wavelength 1550nm
Connector Type

Catv port: SC APC

Inside Module AGC

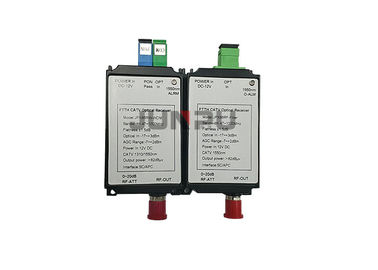

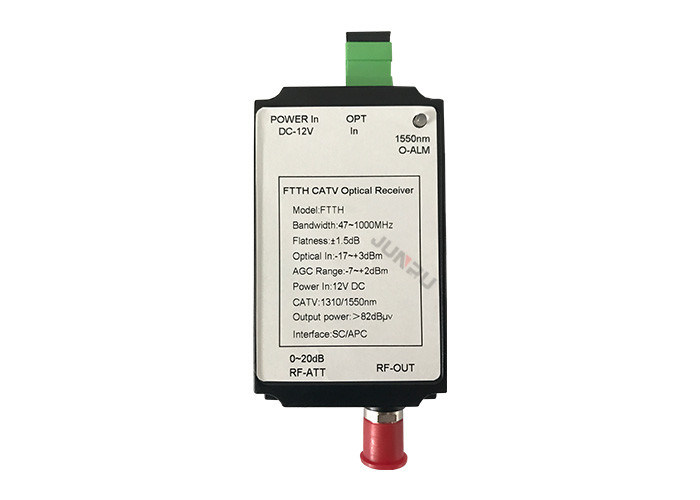

      Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 1Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 2Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 3



Technical Specification:



Item Unit
Optical Parameters
Optical Wavelength nm 1290~1600
Optical Input Range dBm -17~+3
AGC Control Range dB -7~+2
Optical Return Loss dB ≥45
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
  Output Voltage V DC12V
Power Consumption W <3
Working Temp -20~+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)



Workshop:



Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 4



Other Related Products:

Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 5

Indoor Mini 1550nm Filter FTTH Optical Receiver Node 12V 82dbuv SC APC 6





We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
