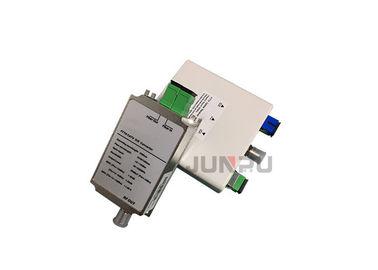

Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC

Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC
Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC

Large Image :  Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC

Product Details:
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: Passive FTTH Catv Optical Receiver
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 8000Pieces Per Month
Detailed Product Description
Product Name: Passive FTTH Catv Optical Receiver Application: HFC&CATV&FTTX
Input Optical Power: -10 ~ 0dBm Receive Wavelength: 1550nm
Bypass Wavelength: 1310/1490nm Output Level: ≥65dBuV@-1dBm
With Wdm: YES Working Wavelength: 1550/1490/1310nm
Power Supply: Without Power Supply OEM: YES
Bandwidth: 45-862MHz/1000MHz
High Light:

ftth catv optical receiver

,

ftth optical node

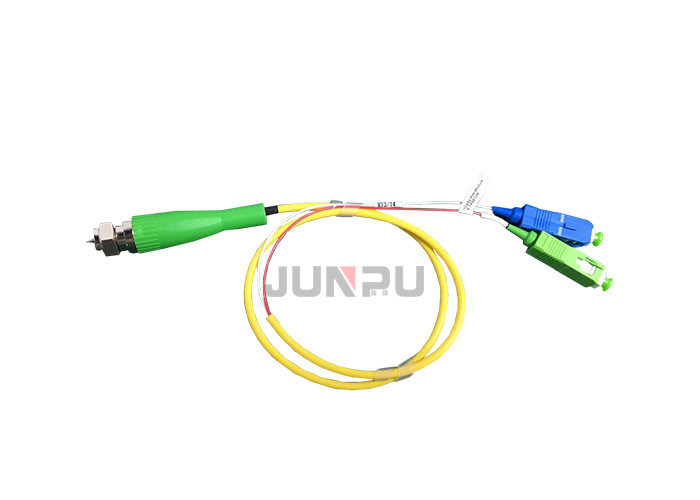

Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC/APC - SC/UPC


Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC 0

Features:

  • Designed for FTTH(Fiber To The Home) networks
  • Without the power supply can work normally
  • Build-in WDM,1310nm/1490nm optical bypass port to ONU(EPON&GPON&GEPON)
  • 1550nm convert to RF for CATV

Specifications

Item Specification Item Specification
Input optical power -10~0dBm Responsivity ≥0.9 A/W
Receive wavelength 1550nm RF Frequency Range 47-1000MHz
Bypass Wavelength 1310/1490nm RF connector F-female
Output level ≥65dBuV@-1dBm Optical connector SC/APC-SC/UPC


Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC 1
FTTH Diagrm:
Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC 2

Workshop:

Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC 3
Passive FTTH Catv Optical Receiver Optical Node WDM 47-1000MHz SC / APC - SC / UPC 4


We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
