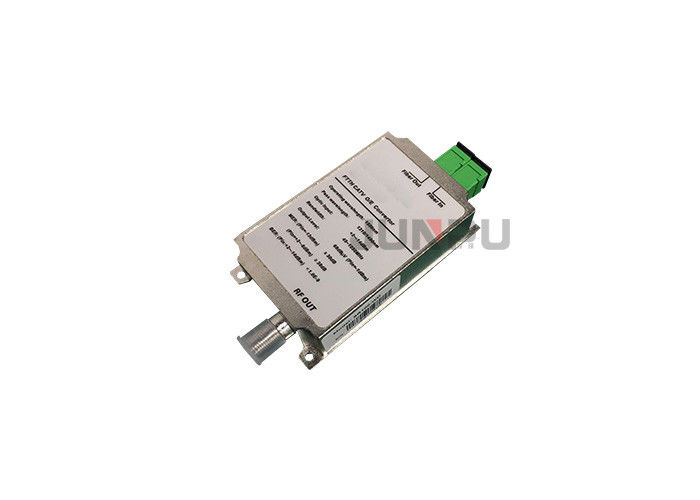

1100~1650nm Ftth Catv Optical Receiver Fiber Ftth Catv Optical Node

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JPX86RF

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000Pieces Per Month

Get Best Price
Highlight:

1100nm Ftth Catv Optical Receiver

,

1650nm Ftth Catv Optical Receiver

Product Name:
1550nm FTTH Optical Node Receiver
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1550nm
Power Supply:
DC12V
OEM:
YES
Product Name:
1550nm FTTH Optical Node Receiver
Application:
FTTH FTTB FTTX Network
Receiving Power:
-1 ~ -20dbm(digital)
Output Ports:
1 Output
Fiber Connector:
SC, SC APC, LC, FC
Output Level:
82dbuv
With Wdm:
YES
Working Wavelength:
1550nm
Power Supply:
DC12V
OEM:
YES
1100~1650nm Ftth Catv Optical Receiver Fiber Ftth Catv Optical Node

Junpu 1100~1650nm Ftth Catv Optical Receiver , Fiber Ftth Catv Optical Node



Description:

  • JPX86RF adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RF has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RF FTTH optical terminal can add isolator for only receiving the 1550nm optical.



FTTH Diagram:

1100~1650nm Ftth Catv Optical Receiver Fiber Ftth Catv Optical Node 0



Details:



Parameter Specification
Product Name Micro 1550nm Filter FTTH Optical Node Receiver 12V 82dbuv
Working Wavelength 1550nm
Connector Type

Catv port: SC APC

Inside Module AGC



      1100~1650nm Ftth Catv Optical Receiver Fiber Ftth Catv Optical Node 11100~1650nm Ftth Catv Optical Receiver Fiber Ftth Catv Optical Node 21100~1650nm Ftth Catv Optical Receiver Fiber Ftth Catv Optical Node 3



Technical Specification:



Item Unit
Optical Parameters
Optical Wavelength nm 1290~1600
Optical Input Range dBm -17~+3
AGC Control Range dB -7~+2
Optical Return Loss dB ≥45
Optical Connector   SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7~+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector   F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
  Output Voltage V DC12V
Power Consumption W <3
Working Temp -20~+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)
