Name: Passive Ftth Catv Optical Receiver With Filter 1550nm
Brand: JUNPU
SKU: JPX86RF
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (197 reviews)

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JPX86RF

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days

Payment Terms: T/T, Western Union, Credit Card Via Alibaba

Supply Ability: 10000Pieces Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Ftth Catv Optical Receiver 1550nm, Catv Fiber Optic Receiver, FTTH Optical Node Receiver


Product Name:	FTTH Optical Node Receiver With Filter	Application:	FTTH FTTB FTTX Network
Receiving Power:	-1 ~ -20dbm(digital)	Output Ports:	1 Output
Fiber Connector:	SC, SC APC, LC, FC	Output Level:	82dbuv
With Wdm:	YES	Working Wavelength:	1550nm
Power Supply:	DC12V	OEM:	YES

Product Name:	FTTH Optical Node Receiver With Filter
Application:	FTTH FTTB FTTX Network
Receiving Power:	-1 ~ -20dbm(digital)
Output Ports:	1 Output
Fiber Connector:	SC, SC APC, LC, FC
Output Level:	82dbuv
With Wdm:	YES
Working Wavelength:	1550nm
Power Supply:	DC12V
OEM:	YES

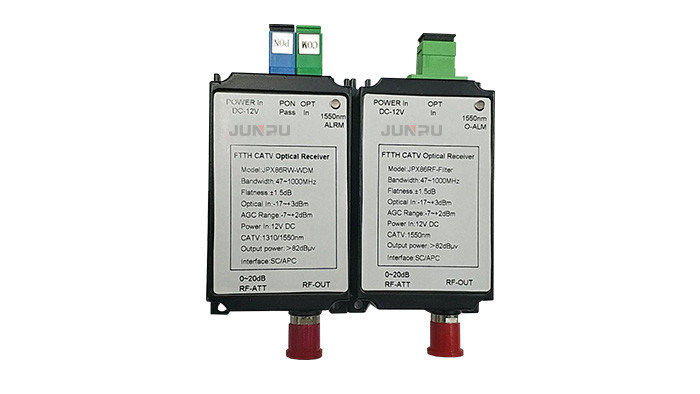

Passive Ftth Catv Optical Receiver With Filter 1550nm

Junpu Passive Ftth Catv Optical Receiver 1550nm, Fiber Optic Receiver

Description:

JPX86RF adopts low optical power detectors, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RF has output level adjustable function and AGC function, output level keeps unchanged which makes the debugging very convenient. JPX86RF FTTH optical terminal can add an isolator for only receiving the 1550nm optical.

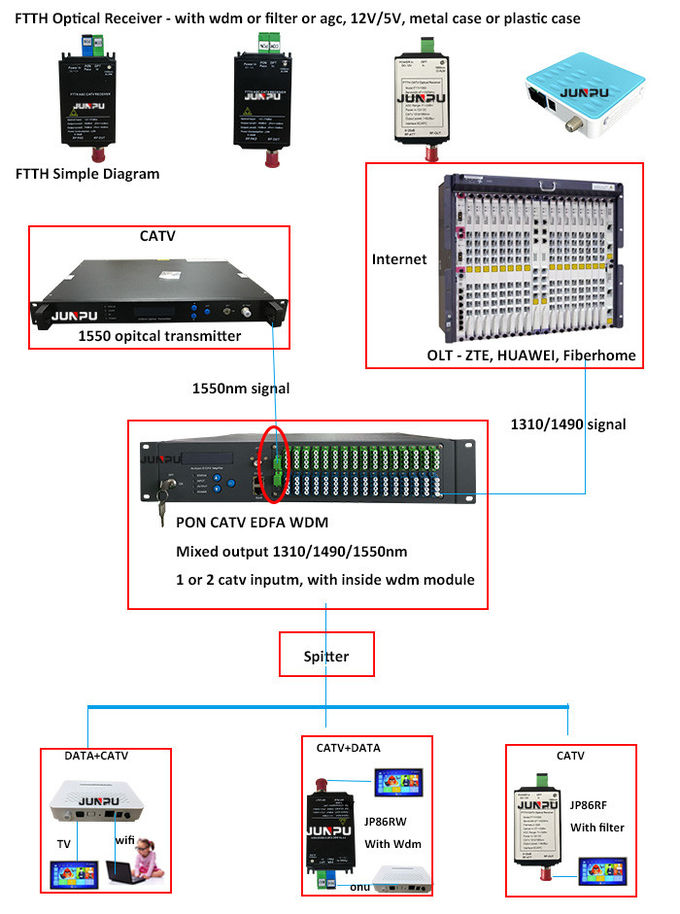

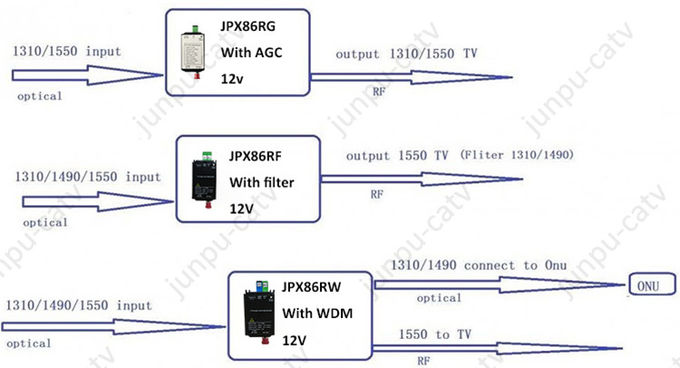

FTTH Diagram:

Passive Ftth Catv Optical Receiver With Filter 1550nm 0

Details:

Parameter	Specification
Product Name	FTTH Optical Node Receiver With Filter Output 1550nm 12V
Working Wavelength	1550nm
Connector Type	Catv port: SC APC
Inside Module	Filter

Passive Ftth Catv Optical Receiver With Filter 1550nm 1

Technical Specification:

Item		Unit
Optical Parameters
Optical Wavelength		nm	1290～1600
Optical Input Range		dBm	-17～+3
AGC Control Range		dB	-7～+2
Optical Return Loss		dB	≥45
Optical Connector			SC/APC or FC/APC
RF Parameters
Bandwidth		MHz	47~1000
Flatness		dB	±1.5
RF Output Level		dBuV	≥82(AGC Control:-7～+2dBm)
Optical Return Loss		dB	≥14dB (47~1000MHz)
Optical Impendence		Ω	75
MGC Control Range		dB	0~20±2
RF connector			F-5
Link Parameters
CTB		dB	≥65@-8dBm
CSO		dB	≥65@-8dBm
CNR		dB	≥48@-8dBm
Others
Power Supply	Input Voltage	V	110~240 AC@50/60Hz
	Output Voltage	V	DC12V
Power Consumption		W	＜3
Working Temp		℃	-20～+50
Working Humidity		%	0-90%
Size		mm	112(L)50(W)22(H)
