Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JPX86RW
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days
Payment Terms: T/T, Western Union, Credit Card Via Alibaba
Supply Ability: 10000Pieces Per Month
Product Name: |
Ftth Optical Receiver With Wdm |
Application: |
FTTH FTTB FTTX Network |
Receiving Power: |
-1 ~ -20dbm(digital) |
Output Ports: |
1 Output |
Fiber Connector: |
SC, SC APC, LC, FC |
Output Level: |
82dbuv |
With Wdm: |
YES |
Working Wavelength: |
1550/1490/1310nm |
Power Supply: |
DC12V |
OEM: |
YES |
Product Name: |
Ftth Optical Receiver With Wdm |
Application: |
FTTH FTTB FTTX Network |
Receiving Power: |
-1 ~ -20dbm(digital) |
Output Ports: |
1 Output |
Fiber Connector: |
SC, SC APC, LC, FC |
Output Level: |
82dbuv |
With Wdm: |
YES |
Working Wavelength: |
1550/1490/1310nm |
Power Supply: |
DC12V |
OEM: |
YES |

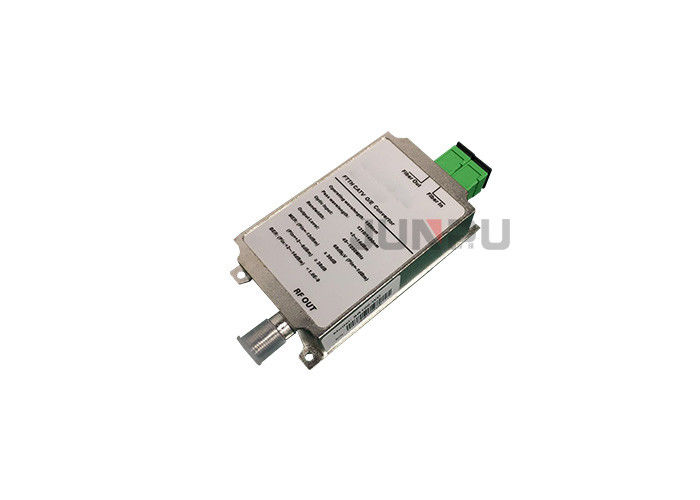

CATV Optical Receiver, FTTH Catv Optical Receiver, 1100~1650nm
Description:
FTTH Diagram:
Details:
| Parameter | Specification |
| Product Name | FTTH Indoor Optical Receiver With Wdm 12V -1 ~ -20dbm Receiving |
| Working Wavelength | output 1550nm--RF; output 1490/1310--ONU |
| Connector Type |
Catv port: SC APC Pon Port: SC APC or SC UPC |
| Inside Module | WDM module |
Technical Specification:
| Item | Unit | ||
| Optical Parameters | |||
| Optical Wavelength | nm | 1290～1600 | |
| Optical Input Range | dBm | -17～+3 | |
| AGC Control Range | dB | -7～+2 | |
| Optical Return Loss | dB | ≥45 | |
| Optical Connector | SC/APC or FC/APC | ||
| RF Parameters | |||
| Bandwidth | MHz | 47~1000 | |
| Flatness | dB | ±1.5 | |
| RF Output Level | dBuV | ≥82(AGC Control:-7～+2dBm) | |
| Optical Return Loss | dB | ≥14dB (47~1000MHz) | |
| Optical Impendence | Ω | 75 | |
| MGC Control Range | dB | 0~20±2 | |
| RF connector | F-5 | ||
| Link Parameters | |||
| CTB | dB | ≥65@-8dBm | |
| CSO | dB | ≥65@-8dBm | |
| CNR | dB | ≥48@-8dBm | |
| Others | |||
| Power Supply | Input Voltage | V | 110~240 AC@50/60Hz |
| Output Voltage | V | DC12V | |
| Power Consumption | W | ＜3 | |
| Working Temp | ℃ | -20～+50 | |
| Working Humidity | % | 0-90% | |
| Size | mm | 112(L)*50(W)*22(H) | |
Workshop:
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
