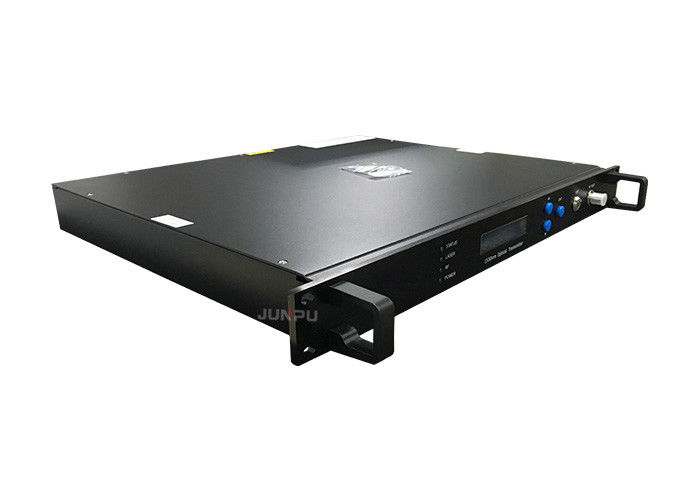

Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP13XXDT

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 Working days based on quantity

Payment Terms: T/T, Western Union,Credit Card Via Alibaba

Supply Ability: 3000Pieces Per Month

Get Best Price
Highlight:

1310 optical transmitter

,

fiber optic laser transmitter

Product Name:
1310nm Optical Transmitter
Wavelength:
1310±10
Output Port:
1 Port
Output Optical Power:
4 ~ 30mw
Work Frequency:
45 ~ 862Mhz
Laser Type:
AOI
Optical Connector:
SC APC Or FC APC
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
Product Name:
1310nm Optical Transmitter
Wavelength:
1310±10
Output Port:
1 Port
Output Optical Power:
4 ~ 30mw
Work Frequency:
45 ~ 862Mhz
Laser Type:
AOI
Optical Connector:
SC APC Or FC APC
Working Voltage:
AC220V Or DC48V
Power Source:
1+1 Backup Power Source
Warranty:
2 Years
OEM:
YES
Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP

Junpu Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP



Description:

  • Junpu 1310nm direct modulation fiber optical transmitter, adopts high linearity DFB laser of famous brand in the world, and builds-in perfect pre-distortion adjustment circuit and laser APC, ATC closed loop control circuit. All the operating parameters of fiber optical transmitter are controlled by microprocessor, and the LCD screen on the front panel can display relative operating status and the fault information.



  • JP13XXDT is a universal 1310nm fiber optical transmitter.



Product Features:

  • The laser adopts the product produced by American Ortel or Japan Fujitsu.
  • All types of JP-1318DT series fiber optical transmitter are built-in high efficiency laser pre-distortion adjustment circuit, which can improve CSO≥8dB.



Details:



Parameter Specification
Product Name Catv 1310nm Optical Transmitter 4 ~ 30mw
Working Wavelength 1310±10
Connector Type SC APC
Output Optical Power 4 ~ 30mw



Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP 0

Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP 1



Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP 2



Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP 3



Technical Specification:



Performance Index Supplement
Optic feature Wavelength (nm) 1310±10 JP13XXDT
  Output power (mW) 4~26
  Return loss (dB) ≥55
  Optical fiber connector   SC/APC Optional FC/APC
RF feature Work bandwidth (MHz) 45-862
  Input level (dBmV) 20 ±2
  Flatness (dB) ≤±0.75 45~862MHz
  Return loss (dB) >16 45~750MHz
  Input impedance (Ω) 75
  RF interface   F type Optional imperial
Link feature Transmit channel   PAL-D/60CH NTSC/80CH
  CNR (dB) ≥52

10Km optical fiber, 0dBm

receive

  CTB (dB) ≤-67
  CSO (dB) ≤-63

General

feature

Network interface port   RJ45, RS232 Support I.E. & SNMP
  Power supply (V) 90~265 city power

-48VDC optional

(30~60VDC)

  Power Consume (W) ≤50 Single power works
  Work temp. (°C) -5~65

Machine temp. control

automatically

  Storage temp. (°C) -40~85
  Operating relative humidity (%) 5~95
  Size (") 19×10×1.75 (W)x(D)x(H)


Workshop:



Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP 4Indoor Catv 1310nm Optical Transmitter 4 ~ 30mw SC APC 1U With SNMP 5
