24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source

China 24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source supplier
24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source supplier 24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source supplier 24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source supplier

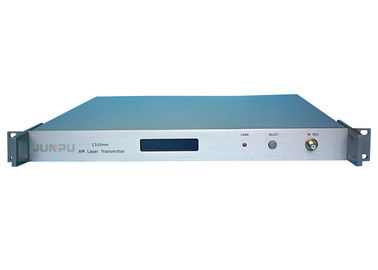

Large Image :  24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source

Product Details:

Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: JP1324DT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard Strong Carton Box
Delivery Time: 1 ~ 10 Working days based on quantity
Payment Terms: T/T, Western Union,Credit Card Via Alibaba
Supply Ability: 3000Pieces Per Month
Contact Now
Detailed Product Description
Product Name: 24mw 1310nm Catv Optical Transmitter Wavelength: 1310±10
Output Port: 1 Port Output Optical Power: 4 ~ 30mw
Work Frequency: 45 ~ 862Mhz Laser Type: AOI
Optical Connector: SC APC Or FC APC Working Voltage: AC220V Or DC48V
Power Source: 1+1 Backup Power Source Warranty: 2 Years
OEM: YES

Junpu 24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source



Product Features:

  • The laser adopts the product produced by American Ortel or Japan Fujitsu.
  • All types of JP-1324T series fiber optical transmitter are built-in high efficiency laser pre-distortion adjustment circuit, which can improve CSO≥8dB.

Description:

  • Junpu 1310nm direct modulation fiber optical transmitter, adopts high linearity DFB laser of famous brand in the world, and builds-in perfect pre-distortion adjustment circuit and laser APC, ATC closed loop control circuit. All the operating parameters of fiber optical transmitter are controlled by microprocessor, and the LCD screen on the front panel can display relative operating status and the fault information.



  • JP1324DT is a universal 1310nm fiber optical transmitter.



Details:



Parameter Specification
Product Name 24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz
Working Wavelength 1310±10
Connector Type SC APC
Output Optical Power 4 ~ 30mw

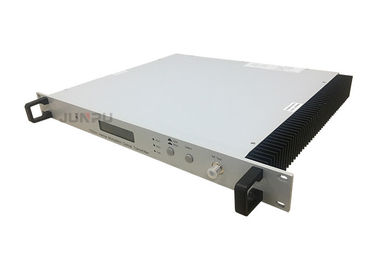

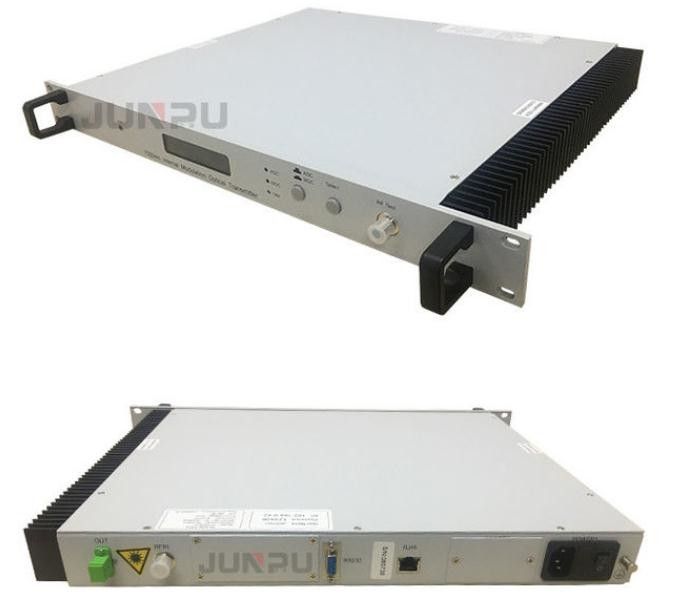

24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source

24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source



24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source



Technical Specification:



Performance Index Supplement
Optic feature Wavelength (nm) 1310±10 JP1324DT
  Output power (mW) 4~26
  Return loss (dB) ≥55
  Optical fiber connector   SC/APC Optional FC/APC
RF feature Work bandwidth (MHz) 45-862
  Input level (dBmV) 20 ±2
  Flatness (dB) ≤±0.75 45~862MHz
  Return loss (dB) >16 45~750MHz
  Input impedance (Ω) 75
  RF interface   F type Optional imperial
Link feature Transmit channel   PAL-D/60CH NTSC/80CH
  CNR (dB) ≥52

10Km optical fiber, 0dBm

receive

  CTB (dB) ≤-67
  CSO (dB) ≤-63

General

feature

Network interface port   RJ45, RS232 Support I.E. & SNMP
  Power supply (V) 90~265 city power

-48VDC optional

(30~60VDC)

  Power Consume (W) ≤50 Single power works
  Work temp. (°C) -5~65

Machine temp. control

automatically

  Storage temp. (°C) -40~85
  Operating relative humidity (%) 5~95
  Size (") 19×10×1.75 (W)x(D)x(H)



Workshop:



24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source24mw 1310nm Catv Optical Transmitter 45 ~ 862Mhz 1+1 Backup Power Source



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
