Home > products > Optical Satellite Transmitter > Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm

Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: JP26R

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging Details: Standard Strong Carton Box

Delivery Time: 1 ~ 10 working days based on quantity

Payment Terms: T/T, Western Union, Credit card Via Alibaba

Supply Ability: 3000 Pieces Per Month

Get Best Price
Highlight:

satellite transmitter and receiver

,

satellite receiver transmitter

Product Name:
Satellite 47-2600mhz Optical Receiver
Input Range:
-13~ 0dBm
Work Bandwidth:
45 ~ 862Mhz @ 960 ~ 2600Mhz
Output Level:
66~86@0dBm
Output Ports:
1 Or 2 Rf Outputs
Connector:
SC APC; FC APC; SC
Application:
Satellite Network; FTTH
Warranty:
2 Years
OEM:
YES
Product Name:
Satellite 47-2600mhz Optical Receiver
Input Range:
-13~ 0dBm
Work Bandwidth:
45 ~ 862Mhz @ 960 ~ 2600Mhz
Output Level:
66~86@0dBm
Output Ports:
1 Or 2 Rf Outputs
Connector:
SC APC; FC APC; SC
Application:
Satellite Network; FTTH
Warranty:
2 Years
OEM:
YES
Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm

Junpu Fiber 2 RF Out Satellite 47-2600mhz Optical Receiver With Inside Wdm



Product Feature:

  • With high sensitivity optical detector.
  • It is an embodiment of high-tech in CATV and L-band satellite fiber linking products
  • It can be received in an optical fiber with 47 ~2600MHz satellite and catv digital and analog signals.
  • Simple installation; It is convenient for user to install.
  • Input power from +0~-13dBm.
  • It has a good electromagnetic interference resistance ability.
  • High performance but low price



Details:



Parameter Specification
Product Name Fiber 2 RF Out Satellite 47-2600mhz Optical Receiver
Input Range Power -13~ 0dBm
Bandwidth

45 ~ 862Mhz @ 960 ~ 2600Mhz

Output Ports 1 or 2 rf outputs

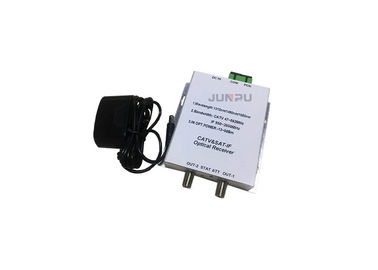

Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 0

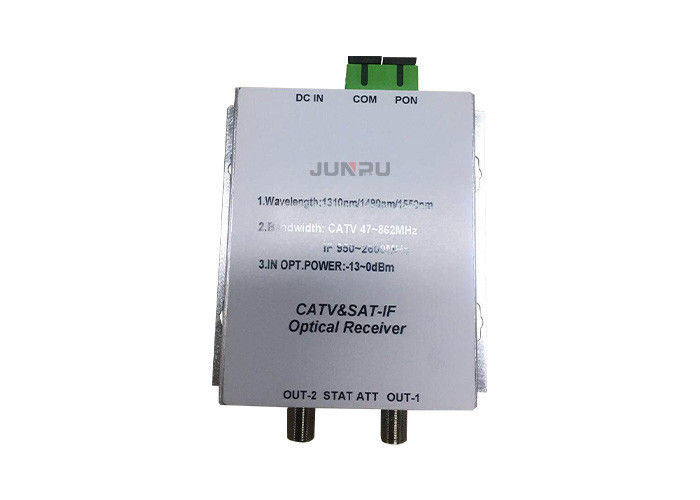

Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 1





Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 2



Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 3



Technical Specification:

Optical
Working Wavelength(nm) 1290~1600
Input range(dBm) -13~0
Optical Return Loss(dB) ≥45
Fiber Connector SC/APC
RF
Frequency(MHz) 47~862
Unflatness(dB) ±1.5
Output Level(dBuV) 66~86@0dBm
Manual Gain Range(dB) 0~20±1
Output Return Loss(dB) ≥16
Output Impedance(Ω) 75
No. of output port 2
RF connector F-5(Imperial)
Link
CTB(dB) ≥62@0dBm
CSO(dB) ≥63@0dBm
CNR(dB) ≥50@0dBm



SAT-IF
Frequency(MHz) 950~2600
Output(dBm) -50~-30
Unflatness(dB) ±1.5dB
IMD -40dBc
Output Impedance(Ω) 75
General
Power supply(V) 12 DC
Power Consumption(W) ≤4
Working Temp(℃) 0 ~ 50
Storage Temp -20~85℃
Humidity 20 ~ 85%


     Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 4



Workshop:

Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 5



Other Related Products Series:



Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 6

Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 7



Fiber 2 RF Out Optical Satellite Transmitter Receiver 47-2600mhz With Inside Wdm 8



We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
