Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: Outdoor 24 Core GYFTA53 Fiber Optical Cable
Payment & Shipping Terms
Packaging Details: 2KM/Wooden Drum
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T
Supply Ability: 1000 Kilometer/Kilometers per Week
Application: |
Aerial, Duct, Direct Buried |
Fiber Type: |
G652D,OM3,G657A2,50/125,62.5/125 |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
2 - 144 Core |
Jacket Material: |
PE,LSZH |
Product Name: |
Outdoor 24 Core GYFTA53 Fiber Optical Cable |
Strength Member: |
FRP Strength Member |
Package: |
2km/roll |
Loose Tube: |
2-12 Loose Tube |
Application: |
Aerial, Duct, Direct Buried |
Fiber Type: |
G652D,OM3,G657A2,50/125,62.5/125 |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
2 - 144 Core |
Jacket Material: |
PE,LSZH |
Product Name: |
Outdoor 24 Core GYFTA53 Fiber Optical Cable |
Strength Member: |
FRP Strength Member |
Package: |
2km/roll |
Loose Tube: |
2-12 Loose Tube |
Outdoor 24 Core GYFTA53 Fiber Optical Cable 1km Price Armoured Fiber Optic Cable
Decsripttion

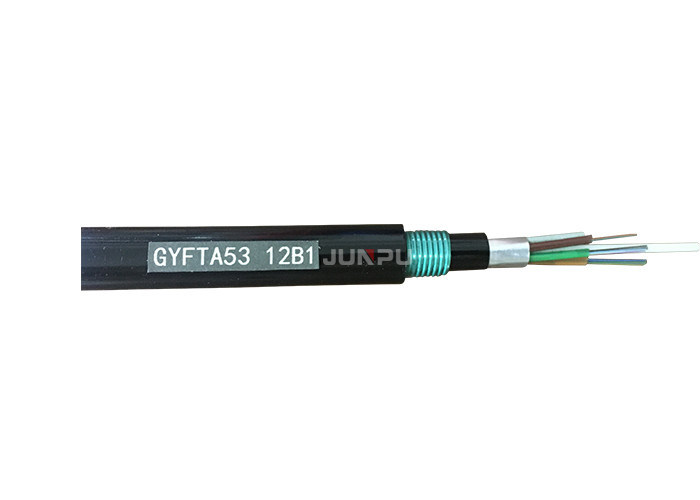

GYFTA53 The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.
Features
Application
Aerial, Duct, Direct Buried.
Optical Characteristics
|
Fiber count
|
Available cable diameter (mm)
|
Cable weight (kg/km)
|
Tensile strength
long/short term(N)
|
Crush resistance
long/short term
(N/100mm)
|
|
2-36
|
11.4
|
108
|
500/1000
|
300/1000
|
|
2-72
|
12.8
|
134
|
600/1500
|
300/1000
|
|
2-48
|
12.8
|
140
|
1000/3000
|
300/1000
|
|
50-96
|
14.8
|
176
|
1000/3000
|
300/1000
|
|
98-120
|
17.1
|
226
|
1000/3000
|
300/1000
|
|
122-144
|
19.2
|
279
|
1000/3000
|
300/1000
|
