Highlight:
                                                                                                                                                                                                                                                                                                                single mode outdoor fiber cable, armoured cable outdoor


Application:	Outdoor/Aerial/Duct	Fiber Type:	Single Mode G652D
Number Of Conductors:	≥ 10	Fiber Count:	1 - 288 Core
OEM:	Acceptable	Product Name:	GYXTY 12 Core Single Mode Fiber Optic Cable Outdoor
Strength Member:	Steel Wire	Package:	1km - 6km/roll

Application:	Outdoor/Aerial/Duct
Fiber Type:	Single Mode G652D
Number Of Conductors:	≥ 10
Fiber Count:	1 - 288 Core
OEM:	Acceptable
Product Name:	GYXTY 12 Core Single Mode Fiber Optic Cable Outdoor
Strength Member:	Steel Wire
Package:	1km - 6km/roll

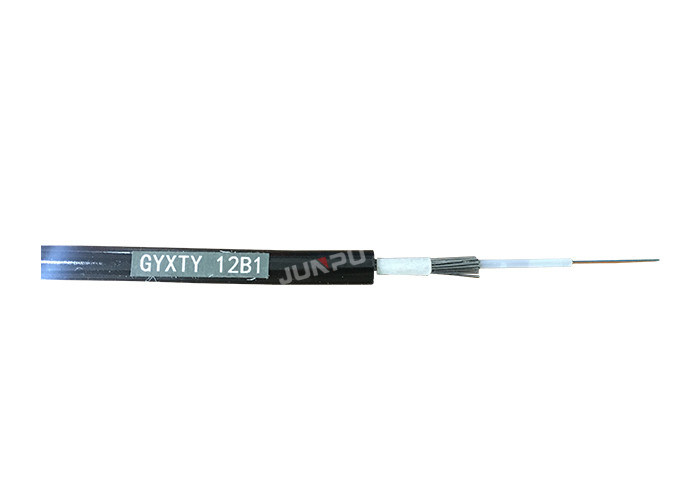

OEM GYXTY 12 Core Single Mode Fiber Optic Cable Outdoor With Steel Wire

GYXTY 12 Core Single Mode Fiber Optic Cable Outdoor With Steel Wire

Decsripttion

The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. Finally, the cable is completed with a flame-retardant LSZH sheath.

Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Special sheath material ensure excellent flame-retardant performance
Crush resistance and fiexibility
Special designed compact structure is good at preventing loose tubes from shrinking
The following measures are taken to ensure the cable watertight:Steel wire used as the central strength member.
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof

Application

Duct
Aerial
Direct buried

Package

We sincerely invite you to send us inquiry for further details.
