Name: MGTS Fire Resistant SM 24 Core Outdoor Optical Cable Direct Buried Loose Tube
Brand: Hangzhou Junpu Optoelectronic Equipment Co., Ltd.
SKU: MGTS
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: MGTS

Payment & Shipping Terms

Packaging Details: Wooden drum, 2000m/drum,3000m/drum,4000m/drum. customer's requirements are also welcomed

Delivery Time: 1 ~ 10 Working days based on the quantity

Payment Terms: T/T

Supply Ability: 500 Kilometer/Kilometers per Day MGTS Fire Resistant SM Direct Buried Loose Tube Fiber Optic Cable

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                single mode outdoor fiber cable, armoured cable outdoor


Application:	Duct/Aerial/Direct Buried	Fiber Type:	G652D/G655/G657A1/A2
Number Of Conductors:	≥ 10	Fiber Count:	2 - 144 Cores
Jacket Material:	Flame-retardant Sheath	Product Name:	MGTS Fire Resistant SM 24 Core Direct Buried Loose Tube Fiber Optic Cable
Strength Member:	Stranded Loose Tube Mining Cable	Package:	2km/roll
Model Number:	MGTS

Application:	Duct/Aerial/Direct Buried
Fiber Type:	G652D/G655/G657A1/A2
Number Of Conductors:	≥ 10
Fiber Count:	2 - 144 Cores
Jacket Material:	Flame-retardant Sheath
Product Name:	MGTS Fire Resistant SM 24 Core Direct Buried Loose Tube Fiber Optic Cable
Strength Member:	Stranded Loose Tube Mining Cable
Package:	2km/roll
Model Number:	MGTS

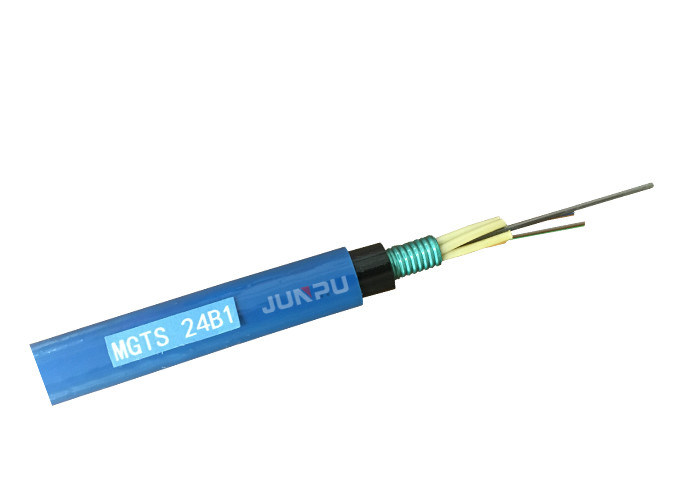

MGTS Fire Resistant SM 24 Core Outdoor Optical Cable Direct Buried Loose Tube

MGTS Fire Resistant SM 24 Core Direct Buried Loose Tube Fiber Optic Cable

Decsripttion

The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. Finally, the cable is completed with a flame-retardant LSZH sheath.

MGTS Fire Resistant SM 24 Core Outdoor Optical Cable Direct Buried Loose Tube 0

Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Special sheath material ensure excellent flame-retardant performance
Crush resistance and fiexibility
Special designed compact structure is good at preventing loose tubes from shrinking
The following measures are taken to ensure the cable watertight:Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof

Application

Duct
Aerial
Direct buried

Package

We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
