Product Details:
Payment & Shipping Terms:
|
Application: | Aerial | Fiber Type: | G652D,OM3,G657A2,50/125,62.5/125 |
---|---|---|---|
Number Of Conductors: | ≥ 2 | Fiber Count: | 4 - 192 Core |
Jacket Material: | PE,LSZH | Product Name: | GYTA Outdoor G657a1 Fiber Optic Cable |
Strength Member: | Corrugated Steel | Package: | 2km/roll |
Model Number: | GYTA | ||
High Light: | single mode outdoor fiber cable,armoured cable outdoor |

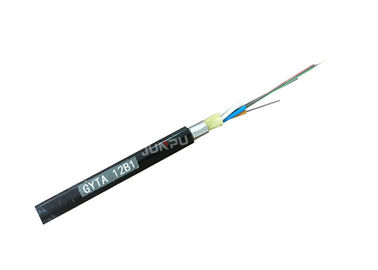

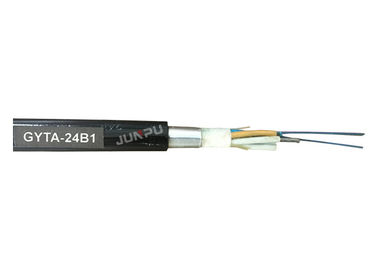

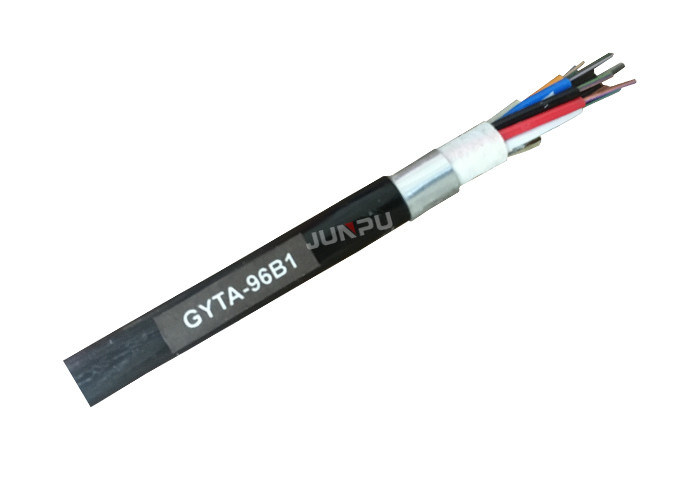

GYTA Outdoor G657a1 Fiber Optic Cable With Aluminum Tape Armored Corning
Decsripttion
GYTA The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Features
Steel wire strength filler protect tube fiber.Aluminum tape armored.
Good ultra violet radiation resistant property.
Good moisture-resistance.
Application
Optical Characteristics
No. |
Characteristics |
Parameter value |
|
1 |
Tensile Strength |
Short Term |
1000N |
Long Term |
500N |
||
2 |
Crush Resistance Strength (N/100mm) |
Short Term |
1000N |
Long Term |
300N |
||
3 |
Min. Bending Radius (mm) |
Dynamic |
20D |
Static |
10D |
||
4 |
Temperature Range |
-40~+60°C |
