Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Payment & Shipping Terms
Packaging Details: Wooden drum, 2000m/drum,3000m/drum,4000m/drum. customer's requirements are also welcomed
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T
Supply Ability: 500 Kilometer/Kilometers per Day MGTS Fire Resistant SM Direct Buried Loose Tube Fiber Optic Cable
Model Number: |
MGTS |
Application: |
Duct/Aerial/Direct Buried |
Fiber Type: |
G652D/G655/G657A1/A2 |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
2 - 144 Cores |
Jacket Material: |
Flame-retardant Sheath |
Product Name: |
MGTS Fire Resistant SM 24 Core Direct Buried Loose Tube Fiber Optic Cable |
Strength Member: |
Stranded Loose Tube Mining Cable |
Package: |
2km/roll |
Model Number: |
MGTS |
Application: |
Duct/Aerial/Direct Buried |
Fiber Type: |
G652D/G655/G657A1/A2 |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
2 - 144 Cores |
Jacket Material: |
Flame-retardant Sheath |
Product Name: |
MGTS Fire Resistant SM 24 Core Direct Buried Loose Tube Fiber Optic Cable |
Strength Member: |
Stranded Loose Tube Mining Cable |
Package: |
2km/roll |

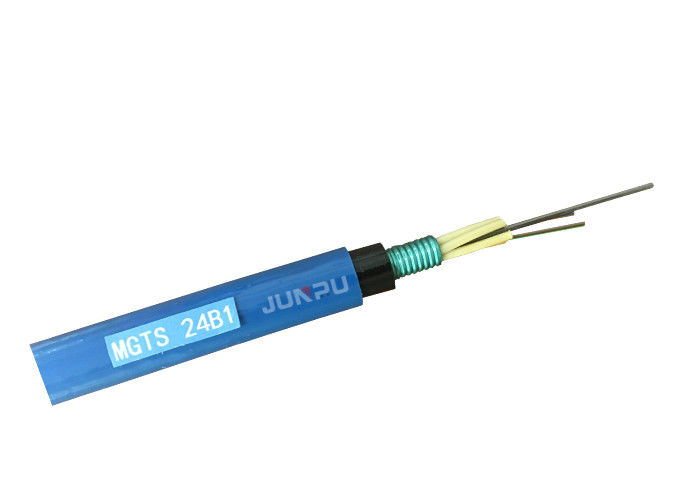

Single Mode And Multimode Fiber Optic Cable With FRP, G652D&G657A
Decsripttion
The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. Finally, the cable is completed with a flame-retardant LSZH sheath.
Features
Application
