outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Model Number: GYXTW

Payment & Shipping Terms

Packaging Details: 2KM/Wooden Drum

Delivery Time: 1 ~ 10 Working days based on the quantity

Payment Terms: T/T

Supply Ability: 1000 Kilometer/Kilometers per Month 48 Core Single Core GYXTW Fiber Optic Cable Outdoor Aerial

Get Best Price
Highlight:
Application:
Aerial
Fiber Type:
Single Mode G652D
Number Of Conductors:
≥ 10
Fiber Count:
48 Core
OEM:
Acceptable
Product Name:
Outdoor Fiber Optic Cable, Gyxtw Fiber Optic Cable With PE Sheath&PSP
Strength Member:
Steel Wire
Package:
1km - 6km/roll
Jacket Material:
PE Outer Sheath
Application:
Aerial
Fiber Type:
Single Mode G652D
Number Of Conductors:
≥ 10
Fiber Count:
48 Core
OEM:
Acceptable
Product Name:
Outdoor Fiber Optic Cable, Gyxtw Fiber Optic Cable With PE Sheath&PSP
Strength Member:
Steel Wire
Package:
1km - 6km/roll
Jacket Material:
PE Outer Sheath

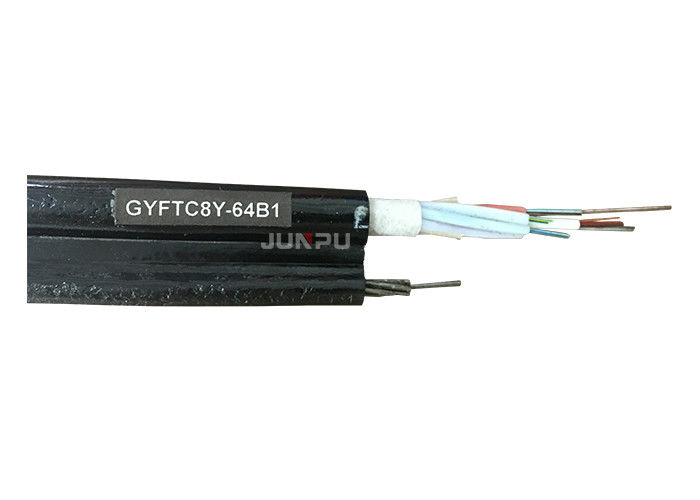

outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP

Outdoor Fiber Optic Cable, Gyxtw Fiber Optic Cable With PE Sheath&PSP

outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP 0

Description

  • These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
  • The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.



Technical Character

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24



Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



Mechanical and Environmental Characteristics

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature -20~+60
Operating Temperature -40~+70
Storage Temperature -40~+70



Technical Parameter

Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

Tensile Strength

Long/Short

Term (N)

Crush Resistance

Long/Short

Term (N/100mm)

Bending

Radius Static/Dynamic

(mm)

2~12 10.6 124 1000/3000 1000/3000 10D/20D
14~24 12.0 147 1000/3000 1000/3000 10D/20D





Transmission Characteristics
  G.652 G.655 50/125μm 62.5/125μm

Max Attenuation

(dB/km) (+20℃)

850 nm     3.0 3.3
1300 nm     1.0 1.0
1310 nm 0.36 0.4
1550 nm 0.24 0.23
Cable Cute-off Wavelength (nm) ≤1260 ≤1450



Application

  • Adopted to Outdoor Aerial

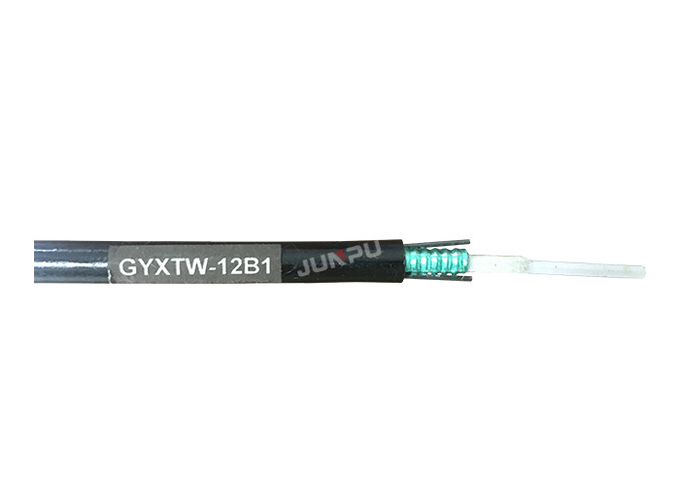

outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP 1outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP 2outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP 3

outdoor fiber optic cable, Gyxtw Fiber Optic Cable with PE sheath&pSP 4

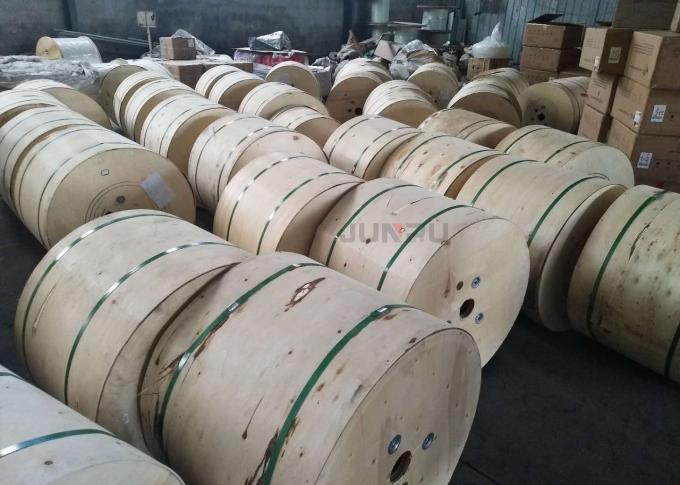

Package
