Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector

Product Details

Place of Origin: China

Brand Name: JUNPU

Certification: ROHS, CE, CCC

Payment & Shipping Terms

Packaging Details: wooden reel of anti-rodent 6 core optical fiber cable GYTS

Delivery Time: 1 ~ 10 Working days based on the quantity

Payment Terms: T/T

Supply Ability: 30000 Kilometer/Kilometers per Week anti-rodent 6 core optical fiber cable GYTS

Get Best Price
Highlight:
Model Number:
GYTS
Application:
Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber Type:
G652D,OM3,G657A2,50/125,62.5/125
Number Of Conductors:
≥ 10
Fiber Count:
4 ~ 192 Core
Jacket Material:
PE,LSZH
Product Name:
GYTS 48 Core Armored Fiber Optic Cable Outdoor
Laying Method:
Aerial And Pipeline Laying Method
Package:
2km/roll
Model Number:
GYTS
Application:
Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber Type:
G652D,OM3,G657A2,50/125,62.5/125
Number Of Conductors:
≥ 10
Fiber Count:
4 ~ 192 Core
Jacket Material:
PE,LSZH
Product Name:
GYTS 48 Core Armored Fiber Optic Cable Outdoor
Laying Method:
Aerial And Pipeline Laying Method
Package:
2km/roll

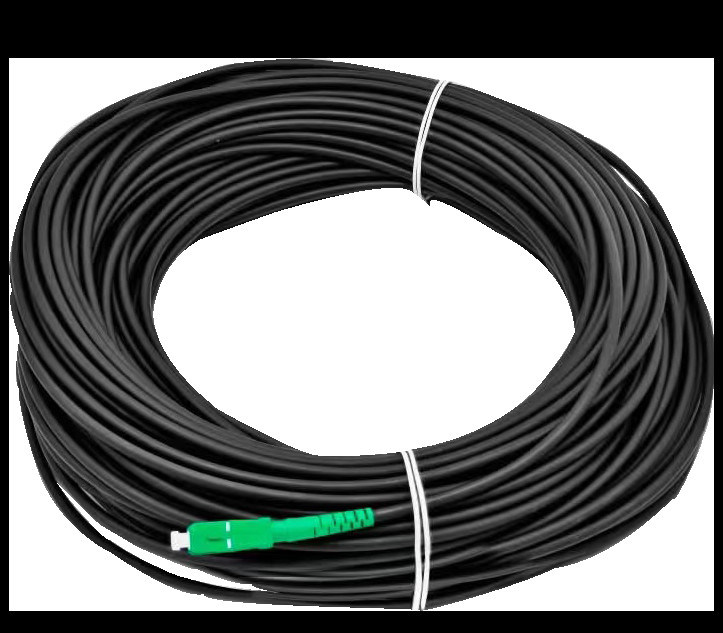

Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector



Outdoor Fiber Optic, Fiber Optic Cables G657A2 Aerial Drop Cable With Pre-Connector


Decsripttion

  • GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
  • Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.

Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector 0

Features

  • Steel wire strength filler protect tube fiber.steel tape armored.
  • Good ultra violet radiation resistant property.
  • Good moisture-resistance.



Application

  • Mainly adopted to direct buried, duct and cable trench.



Optical Characteristics

No.

Characteristics

Parameter value

1

Tensile Strength

Short Term

1000N

Long Term

500N

2

Crush Resistance Strength (N/100mm)

Short Term

1000N

Long Term

300N

3

Min. Bending Radius (mm)

Dynamic

20D

Static

10D

4

Temperature Range

-40~+60°C


Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector 1

Package
Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector 2
Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector 3
