Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: ADSS Fiber Optic Cable
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T
Supply Ability: 500 Kilometer/Kilometers per Day
Application: |
Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise |
Fiber Type: |
G652D,OM3,G657A2,50/125,62.5/125 |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
1-144 Core |
Jacket Material: |
PE,LSZH |
Product Name: |
GYTA Multimode Fiber Optic Cable, Outdoor Single Mode Fiber Optic Cable |
Span: |
Over 1000m |
Package: |
2km/roll |
Cable Type: |
FRP |
Application: |
Telecommunication,outdoor Aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise |
Fiber Type: |
G652D,OM3,G657A2,50/125,62.5/125 |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
1-144 Core |
Jacket Material: |
PE,LSZH |
Product Name: |
GYTA Multimode Fiber Optic Cable, Outdoor Single Mode Fiber Optic Cable |
Span: |
Over 1000m |
Package: |
2km/roll |
Cable Type: |
FRP |
GYTA Multimode Fiber Optic Cable, Outdoor Single Mode Fiber Optic Cable
Description
Features
Application
Optical Characteristics

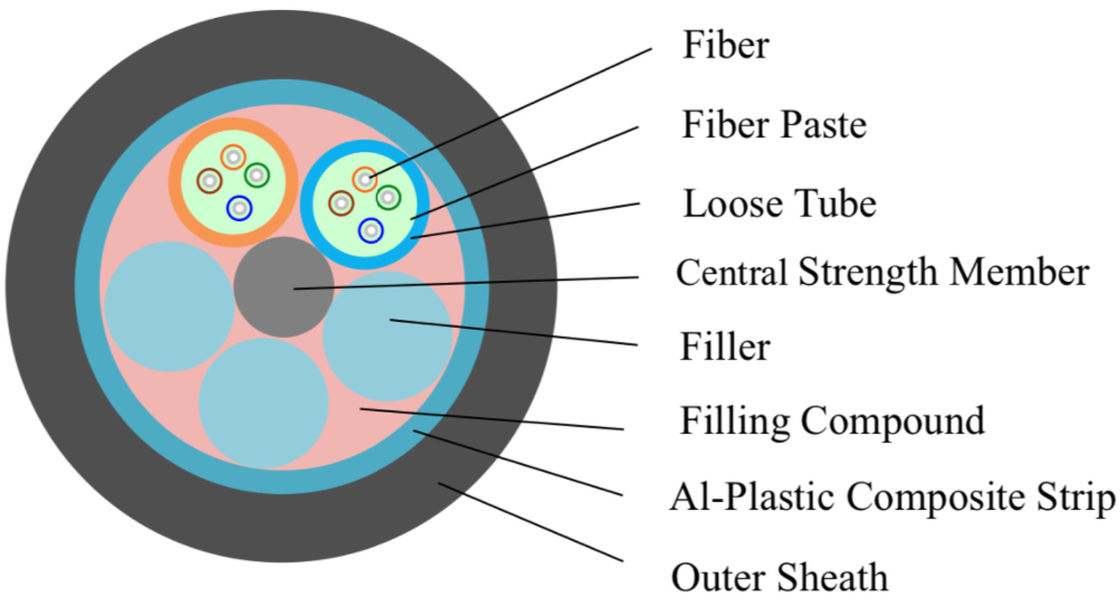

Figure. Cable Cross-Section (A-end)
Item | Unit | Parameter | |
Cable Standard Weight | kg/km | 66 | |
Rated Tensile Strength(RTS) | KN | 3.4 | |
Maximum Allowable Tension(MAT) | KN | 1.2 | |
Every Day Strength(EDS) | KN | 0.85 | |
Min-Bending Radius | Short-Term | mm | 25D |
Long-Term | mm | 15D | |
Crush Performance | Short-Term | N/100mm | 1000 |
Long-Term | N/100mm | 300 | |
Suiting Line Voltage Class | Not more than 110kV | ||
Span | m | 100 | |
Suitable Meteorological Condition | Max wind speed: 60km/h, No icing | ||
Operation | When working or in store | °C | -40°C-+70°C |
Temperature | When laying | °C | -10°C-+50°C |
Fiber Attenuation Coefficient in Cable | dB/km(1310nm) | ≤0.36dB/km | |
dB/km(1550nm) | ≤0.22dB/km | ||
